DTC P3107-11: Lost Communication with Airbag System Control Module Circuit Short to Ground [06/2018 - ]: Procedure

  1. CHECK DTC OUTPUT (SRS AIRBAG)
    1. Connect the Techstream to the DLC3.
    2. Turn the power switch on (IG).
    3. Enter the following menus: Body Electrical / SRS Airbag / Trouble Codes.
    4. Check for DTCs.

      Body Electrical > SRS Airbag > Trouble Codes

      Result

      Result  Proceed to
      Airbag system DTCs are not output. A
      Airbag system DTCs are output. B
    5. Turn the power switch off.

    Result:

    B

    GO TO DTC CHART (AIRBAG SYSTEM (for HV Model)). Refer to  DIAGNOSTIC TROUBLE CODE CHART [06/2018 - 08/2021]  , or refer to  DIAGNOSTIC TROUBLE CODE CHART [08/2021 - 09/2022]  , or refer to  DIAGNOSTIC TROUBLE CODE CHART [09/2022 - ]

    Result:

    A

    See step  2

  2. CHECK AIR BAG ECU ASSEMBLY (CHECK WAVEFORM)
    1. Connect an oscilloscope between the hybrid vehicle control ECU terminals specified in the table below.
    2. Turn the power switch on (READY).
    3. Measure the waveform.

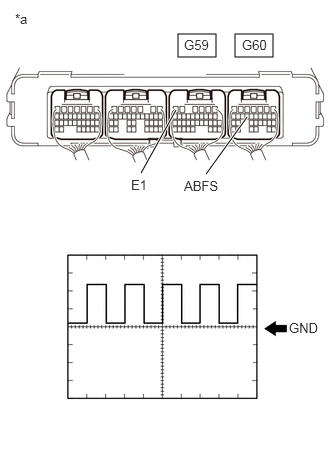

      GTY792564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Hybrid Vehicle Control ECU)
      Item Contents
      Terminal G60-14 (ABFS) - G59-6 (E1)
      Equipment Setting 5 V/DIV., 150 ms./DIV.
      Condition Power switch on (READY)

      Result

      Result  Proceed to
      The waveform appears as shown in the illustration. A
      The waveform differs from the one shown in the illustration. B
    4. Turn the power switch off.

    Result:

    B

    See step  6

    Result:

    A

    See step  3

  3. CLEAR DTC

    Refer to PROCEDURE - Step 3

    Result

    Proceed to
    NEXT

    Result:

    NEXT

    See step  4

  4. CHECK DTC OUTPUT (HYBRID CONTROL)
    1. Connect the Techstream to the DLC3.
    2. Turn the power switch on (IG).
    3. Enter the following menus: Powertrain / Hybrid Control / Trouble Codes.
    4. Check for DTCs.

      Powertrain > Hybrid Control > Trouble Codes

      Result

      Result  Proceed to
      P3107-11 is not output. A
      P3107-11 is output. B
    5. Turn the power switch off.

    Result:

    B

    REPLACE HYBRID VEHICLE CONTROL ECU. Refer to  REMOVAL [06/2018 - 08/2021]  , or refer to  REMOVAL [08/2021 - 09/2022]  , or refer to  REMOVAL [09/2022 - ]

    Result:

    A

    See step  5

  5. CHECK FOR INTERMITTENT PROBLEMS

    Refer to CHECK FOR INTERMITTENT PROBLEMS [06/2018 - ]

    Result

    Proceed to
    OK
    NG

    Result:

    OK

    REPLACE HYBRID VEHICLE CONTROL ECU. Refer to  REMOVAL [06/2018 - 08/2021]  , or refer to  REMOVAL [08/2021 - 09/2022]  , or refer to  REMOVAL [09/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE MALFUNCTIONING PARTS, COMPONENT AND AREA

  6. CHECK AIR BAG ECU ASSEMBLY
    1. Disconnect the G64 airbag ECU assembly connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY781832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Airbag ECU Assembly)

      Standard Resistance

      Tester Connection Condition Specified Condition
      G64-24 (GSW2) - G64-33 (E1) Power switch off 10 kΩ or higher
    3. Reconnect the G64 airbag ECU assembly connector.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE AIR BAG ECU ASSEMBLY. Refer to  REMOVAL [06/2018 - 08/2020]  , or refer to  REMOVAL [08/2020 - 08/2021]  , or refer to  REMOVAL [08/2021 - 09/2022]  , or refer to  REMOVAL [09/2022 - ]

    Result:

    OK

    See step  7

  7. CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU - AIRBAG ECU ASSEMBLY)
    1. Disconnect the G60 hybrid vehicle control ECU connector.
    2. Disconnect the G64 airbag ECU assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G60-14 (ABFS) or G64-24 (GSW2) - Body ground and other terminals Power switch off 10 kΩ or higher

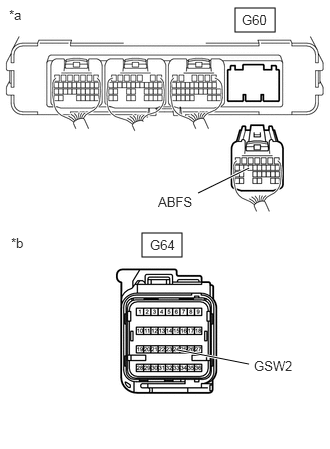

      GTY786658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Rear view of wire harness connector
      (to Hybrid Vehicle Control ECU)
      *b Front view of wire harness connector
      (to Airbag ECU Assembly)
    4. Reconnect the G64 airbag ECU assembly connector.
    5. Reconnect the G60 hybrid vehicle control ECU connector.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE HYBRID VEHICLE CONTROL ECU. Refer to  REMOVAL [06/2018 - 08/2021]  , or refer to  REMOVAL [08/2021 - 09/2022]  , or refer to  REMOVAL [09/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
