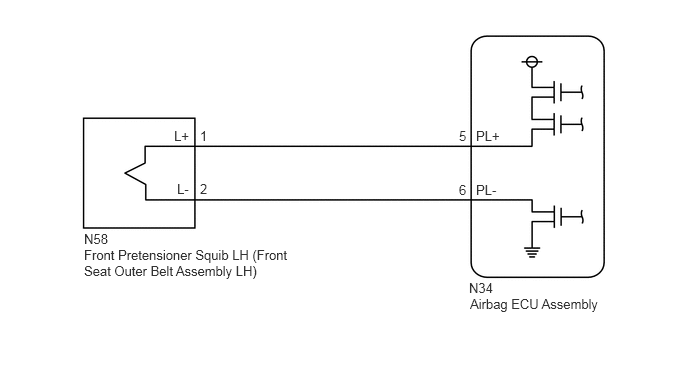

DTC B1905: Short in P/T Squib (LH) Circuit; DTC B1906: Open in P/T Squib (LH) Circuit; DTC B1907: Short in P/T Squib (LH) Circuit (to Ground); DTC B1908: Short in P/T Squib (LH) Circuit (to +B) [06/2018 - ]: Wiring Diagram

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2024 Lexus ES 350, 2024 Lexus ES 250, 2023 Lexus ES 350, 2023 Lexus ES 250, and 2022 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
