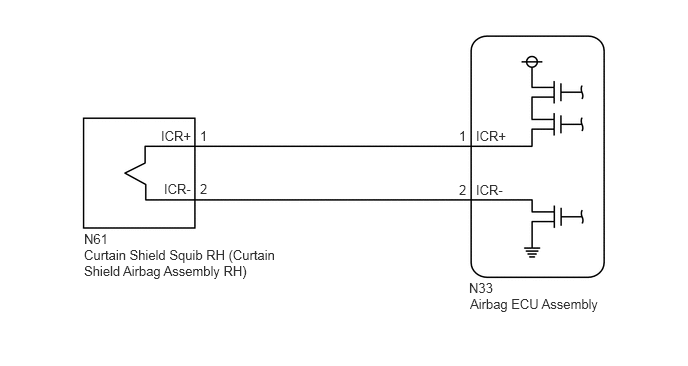

DTC B1830: Short in Curtain Shield Airbag (RH) Squib Circuit; DTC B1831: Open in Curtain Shield Airbag (RH) Squib Circuit; DTC B1832: Short in Curtain Shield Airbag (RH) Squib Circuit (to Ground); DTC B1833: Short in Curtain Shield Airbag (RH) Squib Circuit (to +B) [06/2018 - ]: Wiring Diagram
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2024 Lexus ES 350, 2024 Lexus ES 250, 2023 Lexus ES 350, 2023 Lexus ES 250, and 2022 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
