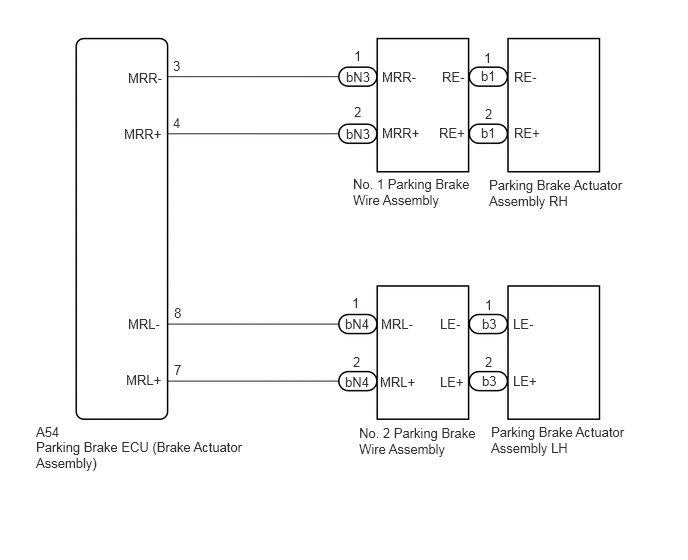

DTC C13A6: Open or Short Circuit in Motor [07/2019 - 08/2021]: Wiring Diagram

GTY800024

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
