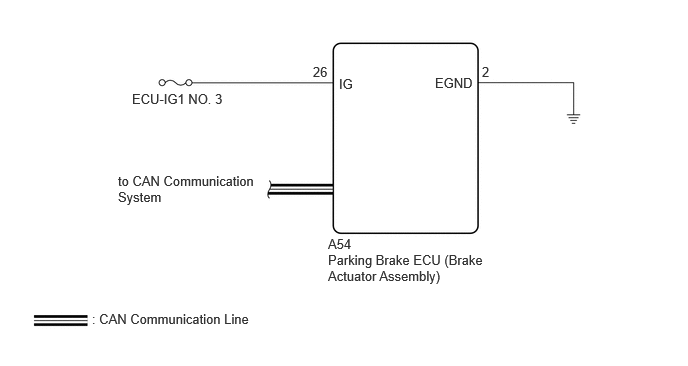

DTC C123A-14: IG1 Circuit Short to Ground or Open [08/2021 - ]: Wiring Diagram

GTY1086139

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
