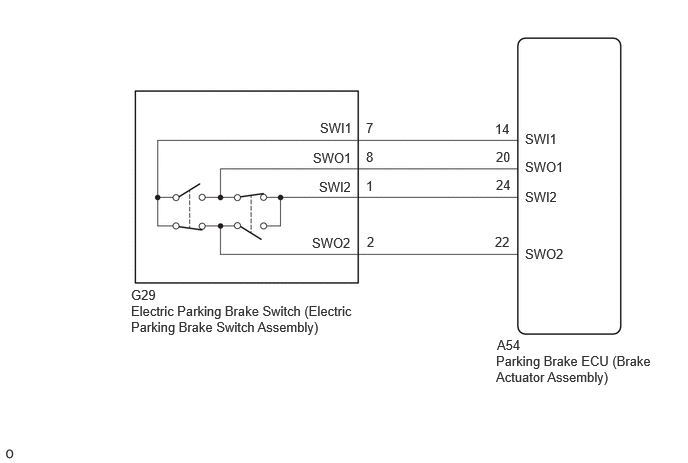

DTC C0609-62: Electric Parking Brake Switch Signal Compare Failure [08/2021 - ]: Wiring Diagram

GTY1087291

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
