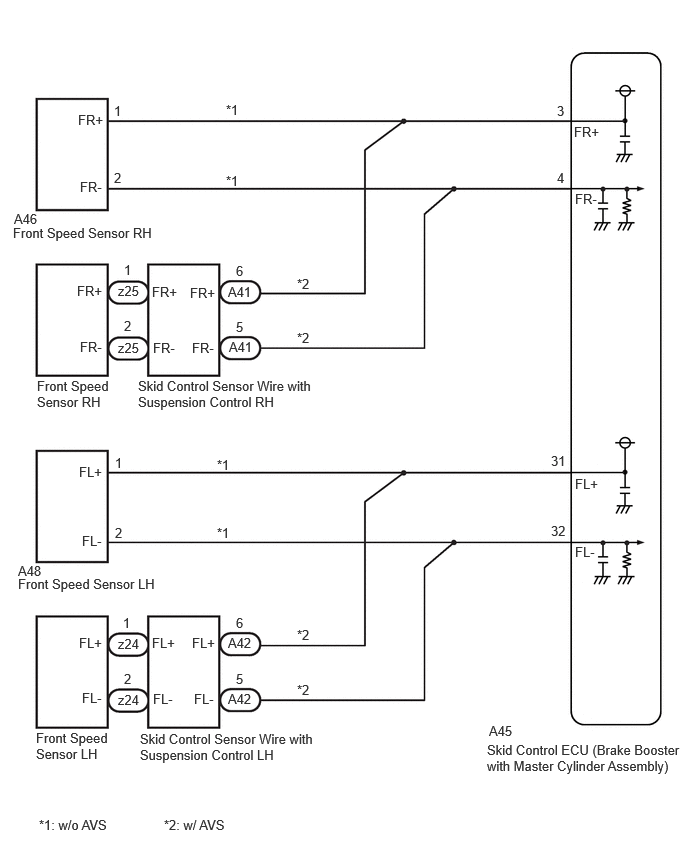

DTC C1413: Front Speed Sensor RH Circuit Output; DTC C1414: Front Speed Sensor LH Circuit Output [08/2021 - ]: Wiring Diagram

GTY1086847

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
