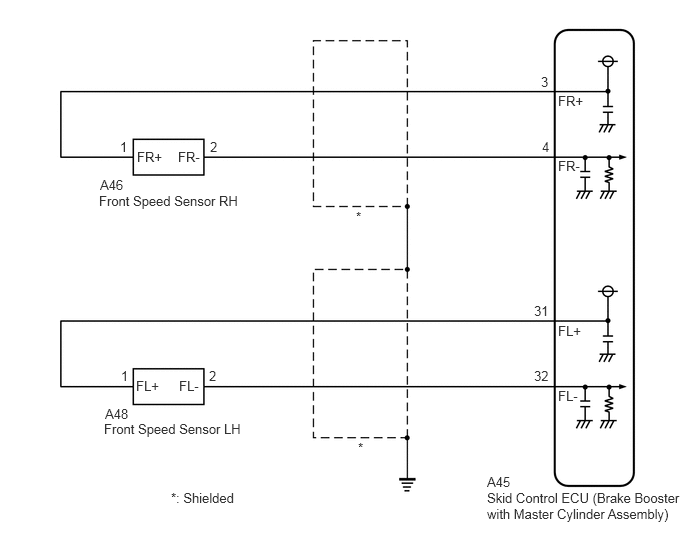

DTC C1413: Front Speed Sensor RH Circuit Output; DTC C1414: Front Speed Sensor LH Circuit Output [06/2018 - 08/2021]: Wiring Diagram

GTY836912

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
