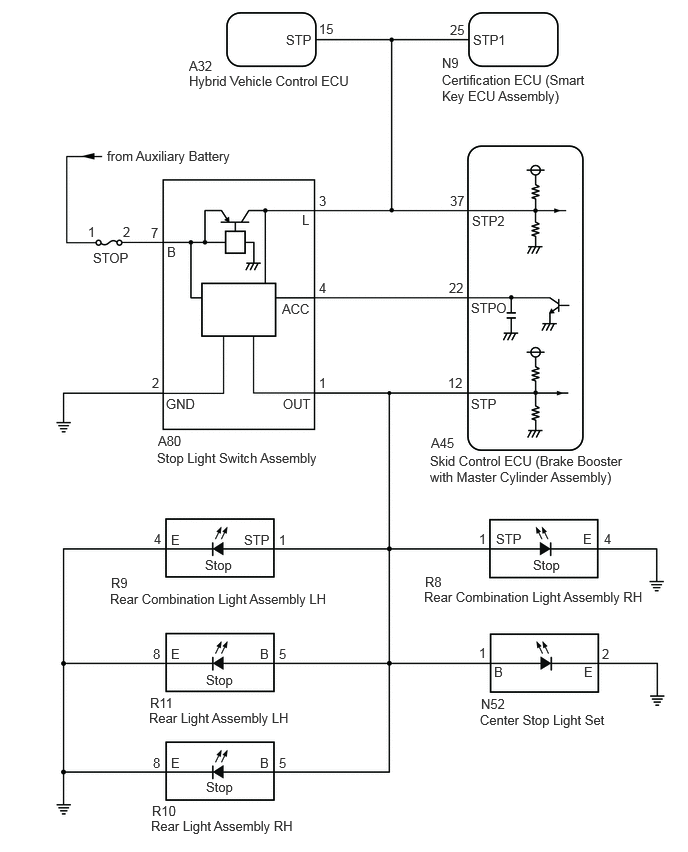

DTC C1380: Stop Light Control Relay Malfunction [08/2020 - ]: Wiring Diagram

GTY955652

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
