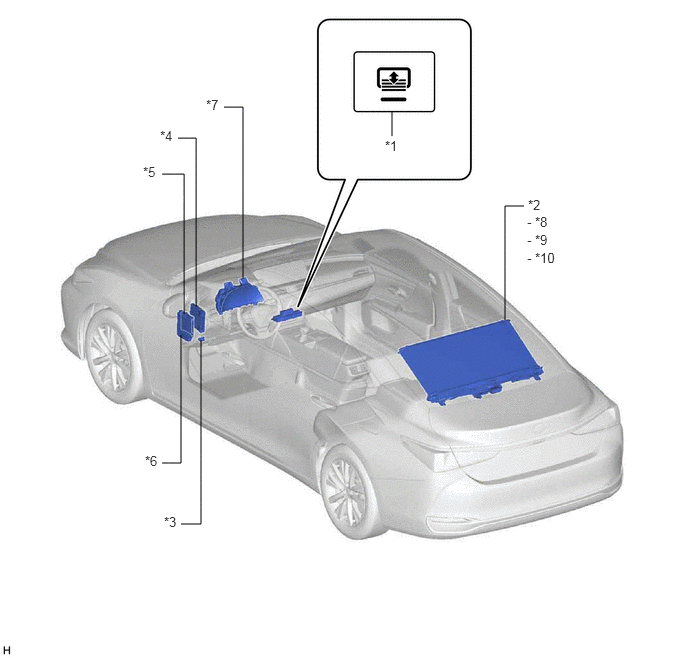

Parts Location [06/2018 - ]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	REAR SUNSHADE SWITCH (REFRESHING SEAT SWITCH)	*2	REAR WINDOW SHADE ASSEMBLY
*3	DLC3	*4	HYBRID VEHICLE CONTROL ECU
*5	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	*6	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-B NO. 2 FUSE - ECU-IG1 NO. 4 FUSE
*7	COMBINATION METER ASSEMBLY	*8	LIMIT SWITCH
*9	MOTOR	*10	REAR SUNSHADE RELAY
