Removal [08/2020 - ]: Procedure

  1. DISCONNECT NO. 1 VACUUM HOSE CONNECTOR

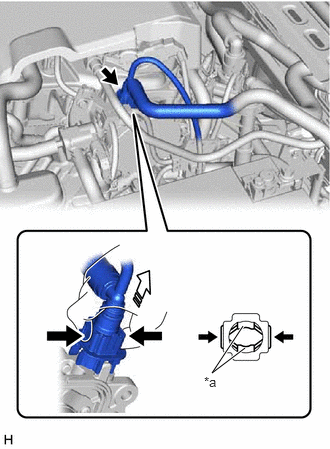

    1. Pinch the retainer of the No. 1 vacuum hose connector, and then pull the No. 1 vacuum hose connector off of the vacuum pump assembly.
      NOTE:

      Be sure to disconnect the No. 1 vacuum hose connector by hand.

      GTY773796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Retainer
      Pinch
      Pull off
  2. SEPARATE ENGINE WIRE

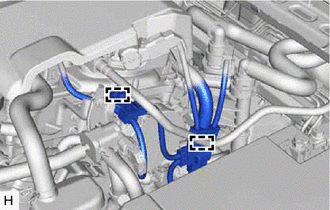

    1. Disengage the 2 clamps to separate the engine wire.
      GTY767093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE VACUUM PUMP ASSEMBLY

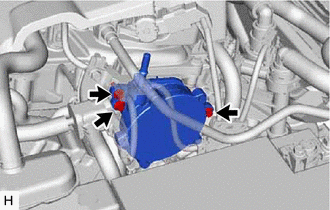

    1. Using an 8 mm socket wrench, remove the 3 bolts and vacuum pump assembly from the engine assembly.
      GTY774372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the No. 1 vacuum pump O-ring from the vacuum pump assembly.
      GTY766380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
