Parts Location [08/2021 - 09/2022]: Illustration

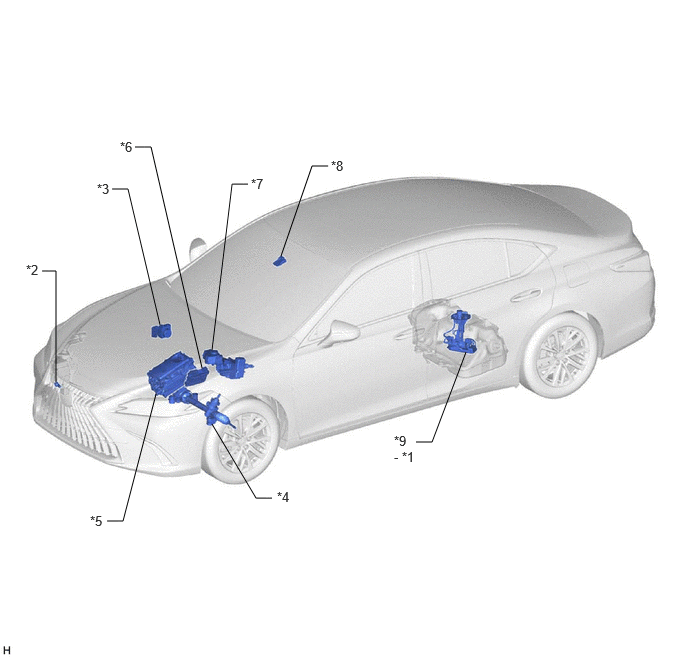

| *1 | FUEL SENDER GAUGE ASSEMBLY | *2 | LEVEL WARNING SWITCH ASSEMBLY |
| *3 | BRAKE ACTUATOR ASSEMBLY - PARKING BRAKE ECU |
*4 | RACK AND PINION POWER STEERING GEAR ASSEMBLY - POWER STEERING ECU |
| *5 | INVERTER WITH CONVERTER ASSEMBLY | *6 | ECM |
| *7 | BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY - SKID CONTROL ECU |
*8 | FORWARD RECOGNITION CAMERA |
| *9 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY | - | - |
| *A | w/ Panoramic View Monitor System | *B | w/ Seat Position Memory |
| *C | w/ Power Trunk Lid System | - | - |

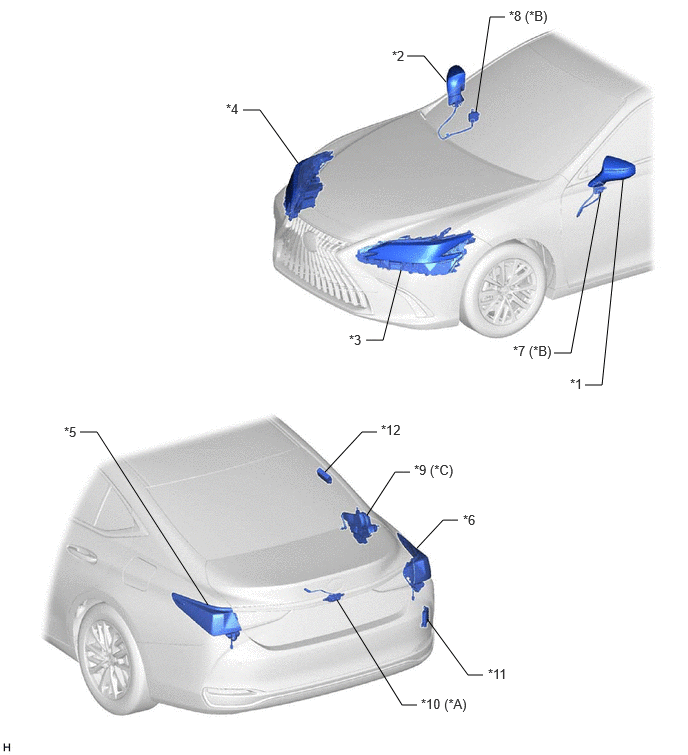

| *1 | OUTER REAR VIEW MIRROR ASSEMBLY LH - OUTER MIRROR RETRACTOR LH - SIDE TURN SIGNAL LIGHT ASSEMBLY LH |
*2 | OUTER REAR VIEW MIRROR ASSEMBLY RH - OUTER MIRROR RETRACTOR RH - SIDE TURN SIGNAL LIGHT ASSEMBLY RH |
| *3 | HEADLIGHT ASSEMBLY LH - HEADLIGHT ECU SUB-ASSEMBLY LH - HEADLIGHT UNIT ASSEMBLY LH (for LED Type Turn Signal Light) - FRONT TURN SIGNAL LIGHT BULB LH (for Bulb Type Turn Signal Light) |
*4 | HEADLIGHT ASSEMBLY RH - HEADLIGHT ECU SUB-ASSEMBLY RH - HEADLIGHT UNIT ASSEMBLY RH (for LED Type Turn Signal Light) - FRONT TURN SIGNAL LIGHT BULB RH (for Bulb Type Turn Signal Light) |
| *5 | REAR COMBINATION LIGHT ASSEMBLY LH | *6 | REAR COMBINATION LIGHT ASSEMBLY RH |
| *7 | OUTER MIRROR CONTROL ECU ASSEMBLY LH | *8 | OUTER MIRROR CONTROL ECU ASSEMBLY RH |
| *9 | LUGGAGE CLOSER MOTOR ASSEMBLY | *10 | REAR TELEVISION CAMERA ASSEMBLY |
| *11 | BLIND SPOT MONITOR SENSOR RH (B) | *12 | TIRE PRESSURE WARNING ECU AND RECEIVER |
| *A | w/ Navigation System | *B | w/ Manual (SOS) Switch |
| *C | w/ Parking Support Brake System | *D | w/ Headup Display System |

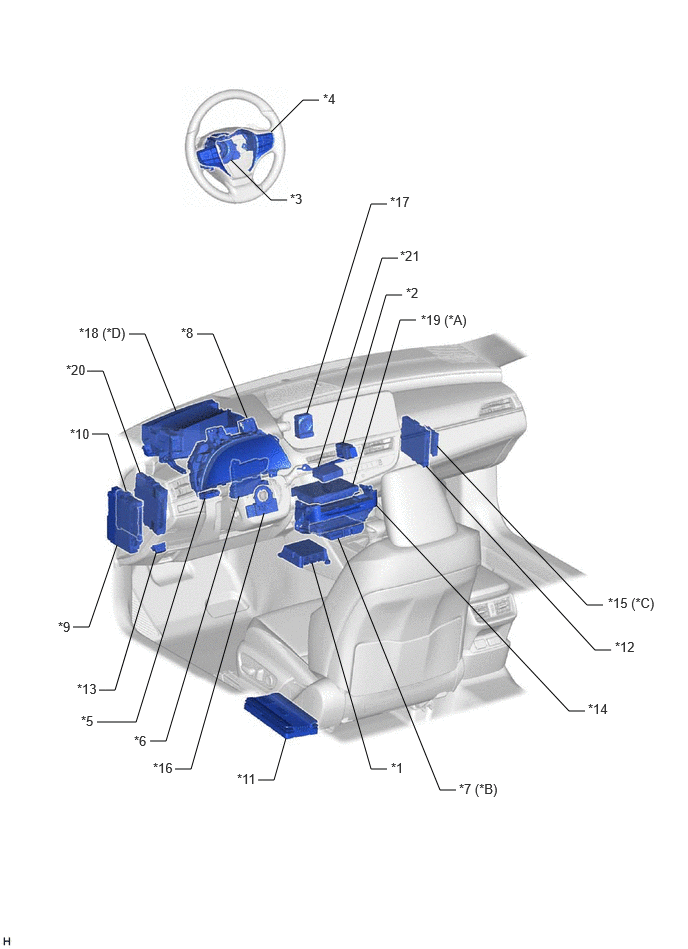

| *1 | AIRBAG ECU ASSEMBLY | *2 | HAZARD WARNING SIGNAL SWITCH ASSEMBLY |
| *3 | SPIRAL CABLE SUB-ASSEMBLY | *4 | STEERING PAD SWITCH ASSEMBLY |
| *5 | TRIP SWITCH - ODO/TRIP SWITCH - LIGHT CONTROL RHEOSTAT UP SWITCH - LIGHT CONTROL RHEOSTAT DOWN SWITCH |
*6 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *7 | DCM (TELEMATICS TRANSCEIVER) | *8 | COMBINATION METER ASSEMBLY |
| *9 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-DCC NO. 2 FUSE - METER-IG2 FUSE - HAZ FUSE |
*10 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *11 | STEREO COMPONENT AMPLIFIER ASSEMBLY | *12 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *13 | DLC3 | *14 | RADIO RECEIVER ASSEMBLY |
| *15 | CLEARANCE WARNING ECU ASSEMBLY | *16 | STEERING SENSOR |
| *17 | CLOCK ASSEMBLY | *18 | METER MIRROR SUB-ASSEMBLY |
| *19 | NAVIGATION ECU | *20 | HYBRID VEHICLE CONTROL ECU |
| *21 | VEHICLE APPROACHING SPEAKER CONTROLLER | - | - |
| *A | for Lithium-ion Battery | - | - |

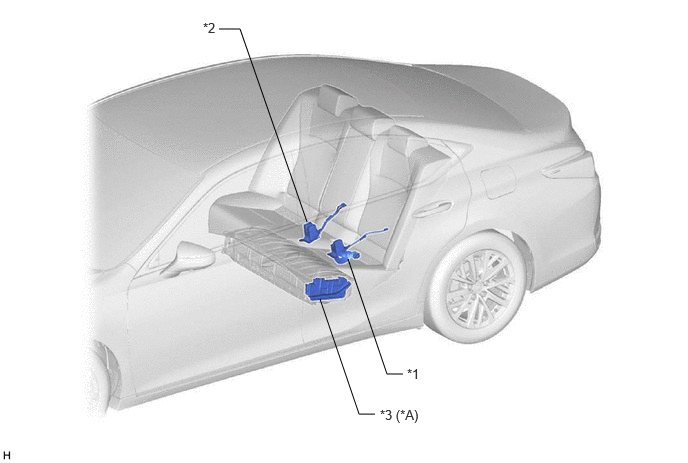

| *1 | REAR SEAT INNER BELT ASSEMBLY LH | *2 | REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH |
| *3 | BATTERY ECU ASSEMBLY | - | - |
