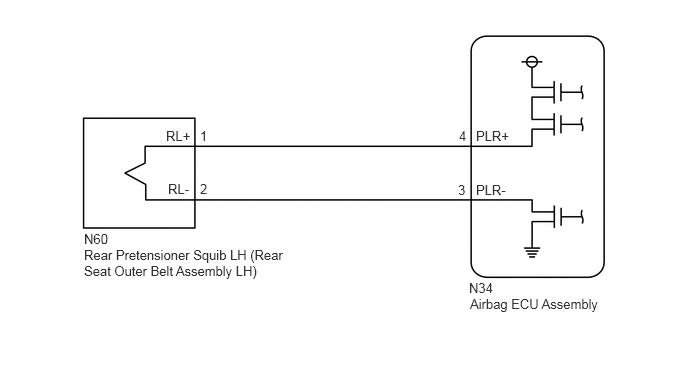

DTC B1925: Short in Rear P/T Squib (LH) Circuit; DTC B1926: Open in Rear P/T Squib (LH) Circuit; DTC B1927: Short in Rear P/T Squib (LH) Circuit (to Ground); DTC B1928: Short in Rear P/T Squib (LH) Circuit (to +B) [06/2018 - ]: Wiring Diagram

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
