DTC B1508-19: Turn Signal/Hazard Flasher Circuit Current Above Threshold [08/2021 - ]: Wiring Diagram

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

for LH Side

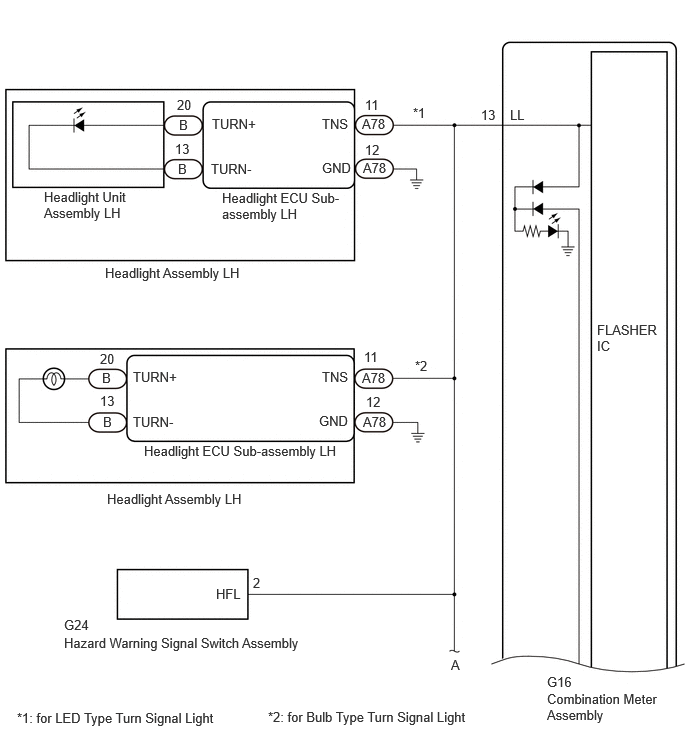

GTY1088131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

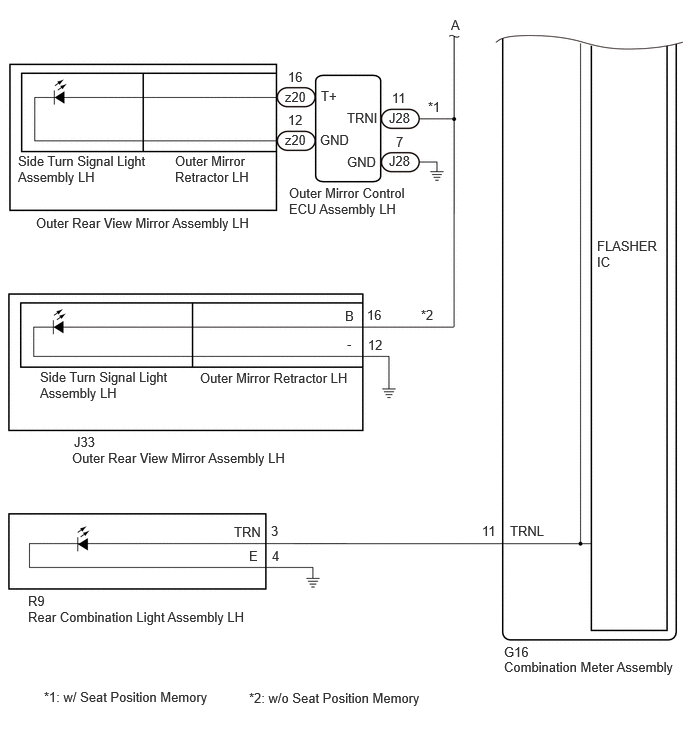

GTY1087716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for RH Side

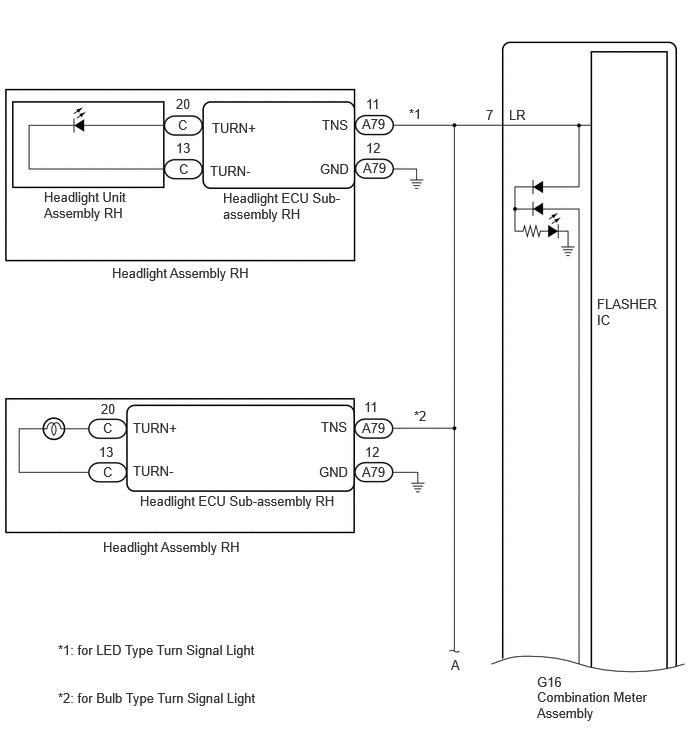

GTY1087545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

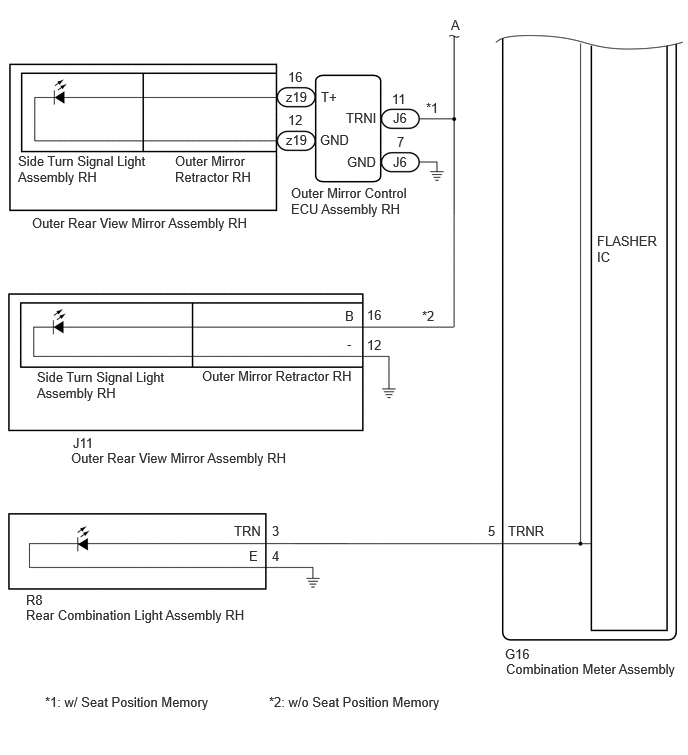

GTY1087718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
