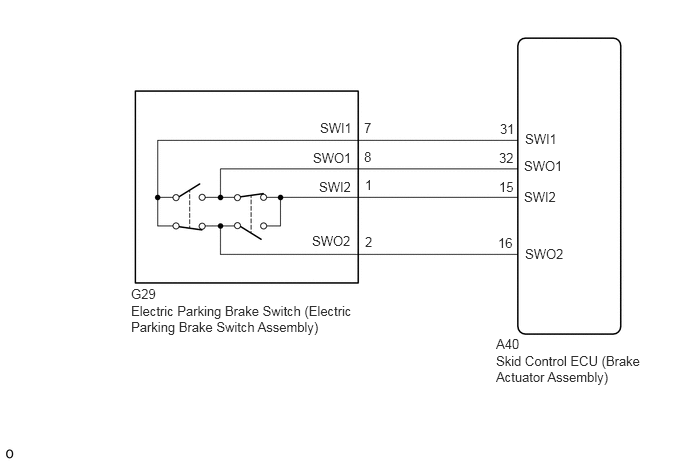

DTC C0609-62: Electric Parking Brake Switch Signal Compare Failure [06/2018 - ]: Wiring Diagram

GTY820948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
