Brake System (Hydraulic) - Service Information (2 Of 2)
>>
VACUUM PUMP (for TMMK Made)
>>
Installation [06/2018 - ]
>>
Caution / Notice / Hint
Caution / Notice / Hint
HINT:

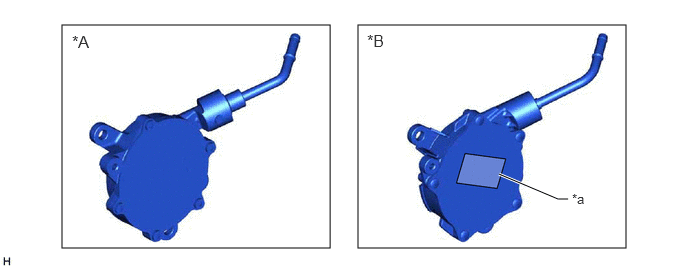

Refer to the illustration to confirm the type of vacuum pump assembly.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A
for Type A
*B
for Type B
*a
Label
-
-
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
