Components [06/2018 - ]

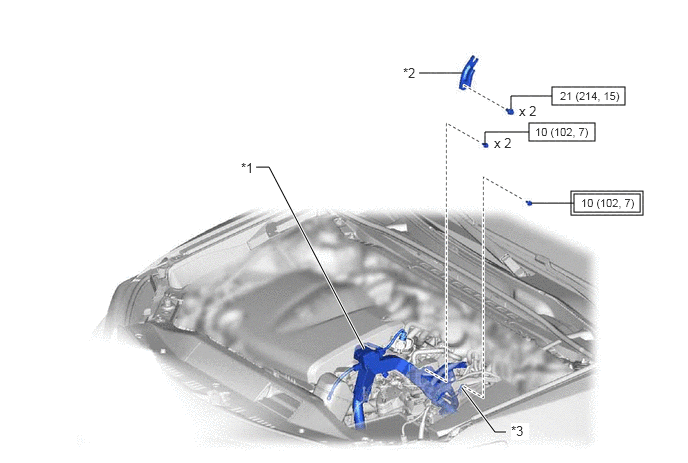

Fig 1: Vacuum Pump (For TMMK Made) Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	ENGINE WIRE	*2	NO. 2 SURGE TANK STAY
*3	EARTH WIRE	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque

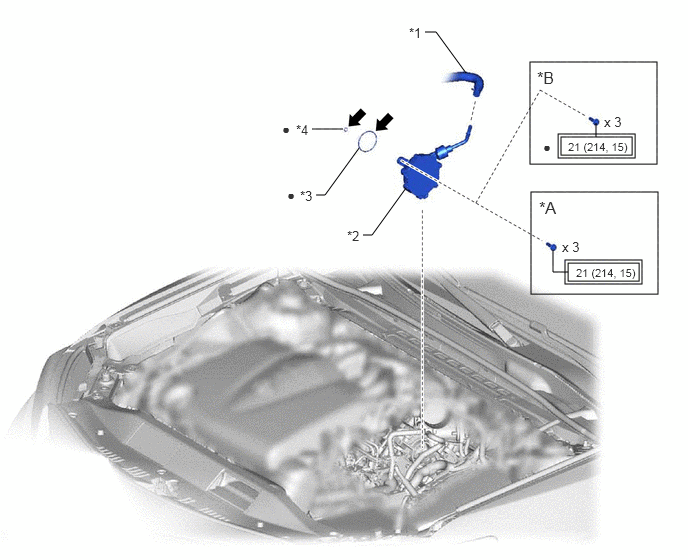

Fig 2: Vacuum Pump (For TMMK Made) Replacement Components With Torque Specifications (2 Of 2)

*A	for Type A	*B	for Type B
*1	AIR TUBE	*2	VACUUM PUMP ASSEMBLY
*3	NO. 2 O-RING	*4	NO. 3 O-RING
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	•	Non-reusable part
	Engine oil	-	-
