Components [08/2020 - ]

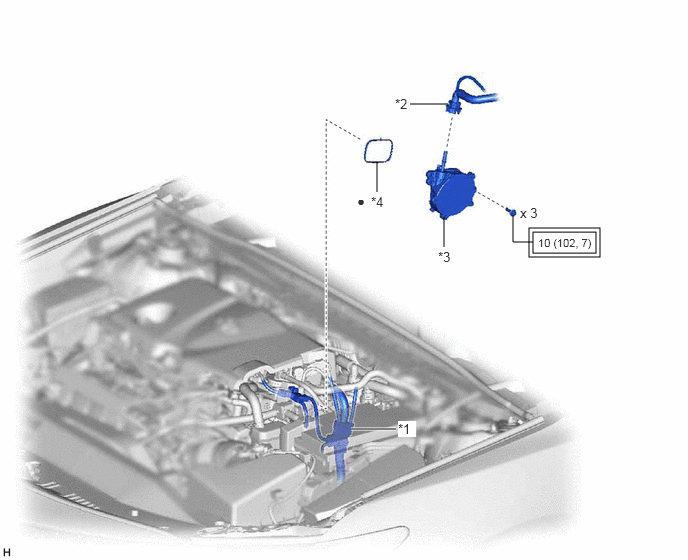

Fig 1: Vacuum Pump (For A25A-FKS) Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	ENGINE WIRE	*2	NO. 1 VACUUM HOSE CONNECTOR
*3	VACUUM PUMP ASSEMBLY	*4	NO. 1 VACUUM PUMP O-RING
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	•	Non-reusable part

Fig 2: Vacuum Pump (For A25A-FKS) Replacement Components With Torque Specifications (2 Of 2)

*1	END COVER	*2	VACUUM PUMP HOUSING
*3	VACUUM PUMP ROTOR	*4	VACUUM PUMP VANE
*5	VACUUM PUMP VANE CAP	*6	VACUUM PUMP COVER O-RING
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	Engine oil	-	-
