Components [06/2018 - 08/2020]

Fig 1: Brake Vacuum Hose (For Gasoline Model) Replacement Components With Torque Specifications [06/2018 - 08/2020] (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT CENTER UPPER SUSPENSION BRACE SUB-ASSEMBLY	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque
*T1	Bolt color black: 8.0 N.m (82 kgf/cm, 71 in.lbf) Bolt color silver: 8.9 N.m (91 kgf/cm, 79 in.lbf)	-	-

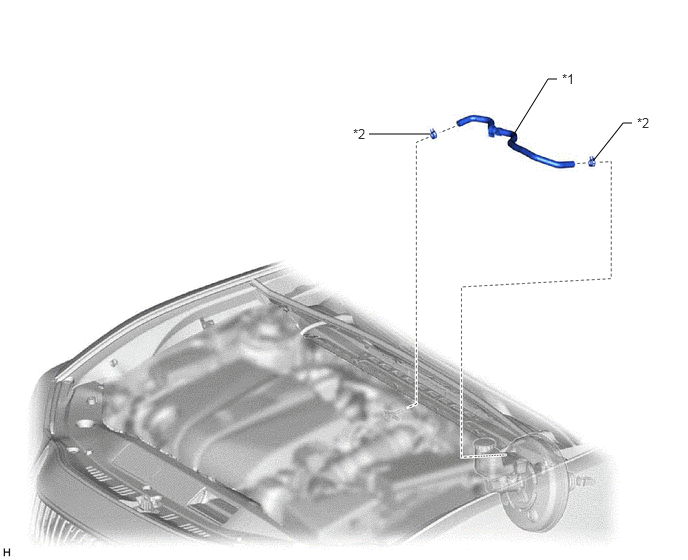

Fig 2: Brake Vacuum Hose (For Gasoline Model) Replacement Components [06/2018 - 08/2020] (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

UNION TO CHECK VALVE HOSE

CLIP

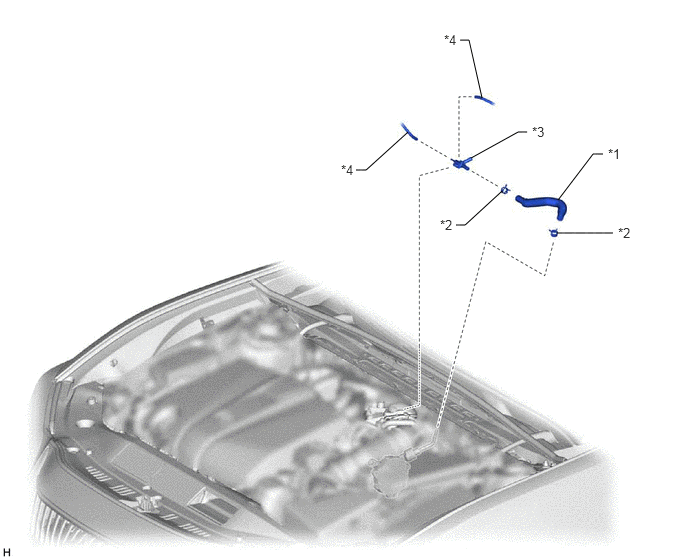

Fig 3: Brake Vacuum Hose (For Gasoline Model) Replacement Components [06/2018 - 08/2020] (3 Of 3)

*1	AIR TUBE	*2	CLIP
*3	AIR DELIVERY WAY	*4	VACUUM TRANSMITTING HOSE ASSEMBLY
