Installation [06/2018 - ]: Procedure
- INSTALL NO. 1 BRAKE TUBE CLAMP BRACKET
- Install the No. 1 brake tube clamp bracket to the brake booster pump assembly with the bolt.
Torque: 7.0 N.m (71 kgf/cm, 62 in.lbf)
- Install the No. 1 brake tube clamp bracket to the brake booster pump assembly with the bolt.
- INSTALL NO. 2 BRAKE ACTUATOR HOSE
- Install the No. 2 brake actuator hose to the brake booster pump assembly and slide the clip to secure it.
*a Identification Mark Front of the vehicle NOTE:- Make sure to connect the No. 2 brake actuator hose with its identification mark facing the front of the vehicle.
- Install the clip within the range shown in the illustration.
- Install the No. 2 brake actuator hose to the brake booster pump assembly and slide the clip to secure it.
- INSTALL BRAKE BOOSTER PUMP ASSEMBLY
- Install the 2 brake booster pump collars and 2 brake booster pump bushings to the brake booster pump assembly as shown in the illustration.
HINT:
Perform this procedure only when replacement of the brake booster pump collars or brake booster pump bushings is necessary.
*1 Brake Booster Pump Collar *2 Brake Booster Pump Bushing - Install the brake booster pump assembly, brake booster pump bushing and brake actuator case collar to the brake actuator bracket assembly as shown in the illustration.
*1 Brake Booster Pump Collar *2 Brake Booster Pump Bushing *a Union *b Connector *c Wire Harness *d Stud Install in this Direction - - NOTE:- Be careful not to allow brake fluid to enter the connector.
- Do not apply excessive force to the brake lines.
- When installing the brake booster pump assembly to the brake actuator bracket assembly, confirm that the 2 brake booster pump bushings and 2 brake booster pump collars are installed to the brake booster pump assembly.
- Do not drop the brake booster pump assembly when carrying it.
- If installing a new brake booster pump assembly, do not remove the hole plugs before connecting the brake lines because the brake booster pump assembly is filled with brake fluid.
- Do not carry the brake booster pump assembly by the parts shown in the illustration.
- Install the nut.
Torque: 6.5 N.m (66 kgf/cm, 58 in.lbf)
- Engage the claw and clamp to install the brake booster pump assembly wire harness to the brake actuator bracket assembly.NOTE:
Engage the claw and clamp in the order shown in the illustration.
- Connect the connector to the brake booster pump assembly and lock the lock lever as shown in the illustration.
Connect the connector Lock the lock lever NOTE:- Make sure that the connector is locked securely.
- Make sure that the connector can be connected smoothly.
- Do not allow water, oil or dirt to enter the connector.
- Install the 2 brake booster pump collars and 2 brake booster pump bushings to the brake booster pump assembly as shown in the illustration.
- CONNECT ACCUMULATOR TO BRAKE MASTER CYLINDER TUBE
- Install the accumulator to brake master cylinder tube to the No. 1 brake tube clamp bracket with the bolt.
Torque: 7.0 N.m (71 kgf/cm, 62 in.lbf)

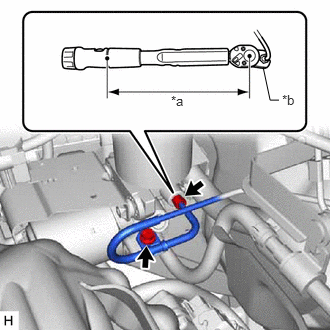

*a Torque Wrench Fulcrum Length *b Union Nut Wrench - Using a union nut wrench, connect the accumulator to brake master cylinder tube to the brake booster pump assembly.
Specified tightening torque
Torque: 15.2 N.m (155 kgf/cm, 11 ft.lbf)
NOTE:- Do not kink or damage the accumulator to brake master cylinder tube.
- Do not allow the accumulator to brake master cylinder tube to twist or interfere with other parts or the vehicle body during tightening.
- Do not allow any foreign matter such as dirt or dust to enter the accumulator to brake master cylinder tube from the connecting parts.
HINT:
- Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.
Refer to PRECAUTION [06/2018 - ]
- When using a union nut wrench (fulcrum length of 22 mm (0.866 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)):
13.4 N.m (137 kgf/cm, 10 ft.lbf)
- Install the accumulator to brake master cylinder tube to the No. 1 brake tube clamp bracket with the bolt.
- CONNECT NO. 2 BRAKE ACTUATOR HOSE
- BLEED NO. 1 BRAKE ACTUATOR TUBE
- FILL RESERVOIR WITH BRAKE FLUID
- CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to PROCEDURE - Step 2
- BLEED BRAKE SYSTEM
Refer to PROCEDURE - Step 3
- INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 46 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 47 [08/2021 - ]
- INSTALL FRONT CENTER UPPER SUSPENSION BRACE SUB-ASSEMBLY
- INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 3
