Components [06/2018 - 08/2021]

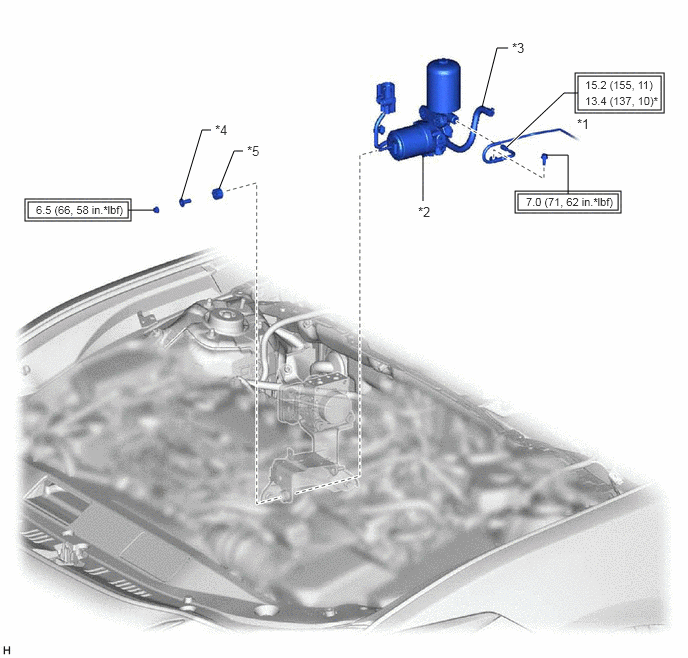

Fig 1: Brake Booster Pump (For HV Model) Replacement Components With Torque Specifications [06/2018 - 08/2021] (1 Of 4)
| *1 | FRONT CENTER UPPER SUSPENSION BRACE SUB-ASSEMBLY | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| *T1 | Bolt color black: 8.0 N.m (82 kgf/cm, 71 in.lbf) Bolt color silver: 8.9 N.m (91 kgf/cm, 79 in.lbf) |
- | - |

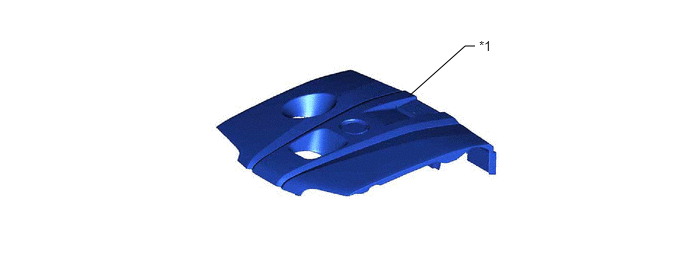

| *1 | NO. 1 ENGINE COVER SUB-ASSEMBLY | - | - |
Fig 3: Brake Booster Pump (For HV Model) Replacement Components With Torque Specifications [06/2018 - 08/2021] (3 Of 4)
| *1 | ACCUMULATOR TO BRAKE MASTER CYLINDER TUBE | *2 | BRAKE BOOSTER PUMP ASSEMBLY |
| *3 | NO. 2 BRAKE ACTUATOR HOSE | *4 | BRAKE ACTUATOR CASE COLLAR |
| *5 | BRAKE BOOSTER PUMP BUSHING | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | * | For use with a union nut wrench |

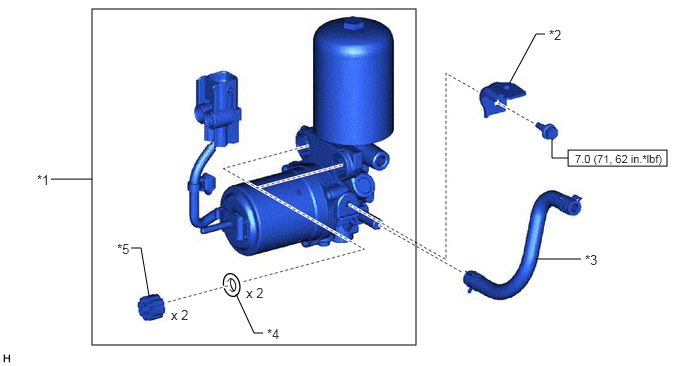

Fig 4: Brake Booster Pump (For HV Model) Replacement Components With Torque Specifications [06/2018 - 08/2021] (4 Of 4)
| *1 | BRAKE BOOSTER PUMP ASSEMBLY | *2 | NO. 1 BRAKE TUBE CLAMP BRACKET |
| *3 | NO. 2 BRAKE ACTUATOR HOSE | *4 | BRAKE BOOSTER PUMP COLLAR |
| *5 | BRAKE BOOSTER PUMP BUSHING | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
