Components [06/2018 - 08/2020]
| *1 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | - | - |
Fig 2: Brake Booster (for Gasoline Model) Replacement Components With Torque Specifications [06/2018 - 08/2020] (2 Of 5)
| *1 | FRONT CENTER UPPER SUSPENSION BRACE SUB-ASSEMBLY | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| *T1 | Bolt color black: 8.0 N.m (82 kgf/cm, 71 in.lbf) Bolt color silver: 8.9 N.m (91 kgf/cm, 79 in.lbf) |
- | - |

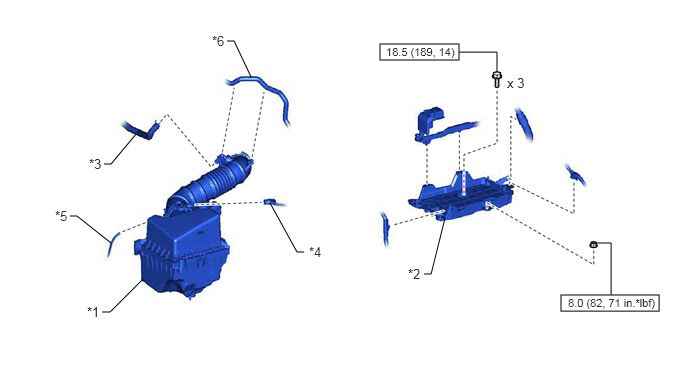

Fig 3: Brake Booster (for Gasoline Model) Replacement Components With Torque Specifications [06/2018 - 08/2020] (3 Of 5)
| *1 | AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE | *2 | BATTERY CLAMP SUB-ASSEMBLY |
| *3 | NO. 2 VENTILATION HOSE | *4 | MASS AIR FLOW METER SUB-ASSEMBLY CONNECTOR |
| *5 | VACUUM HOSE | *6 | NO. 1 FUEL VAPOR FEED HOSE |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

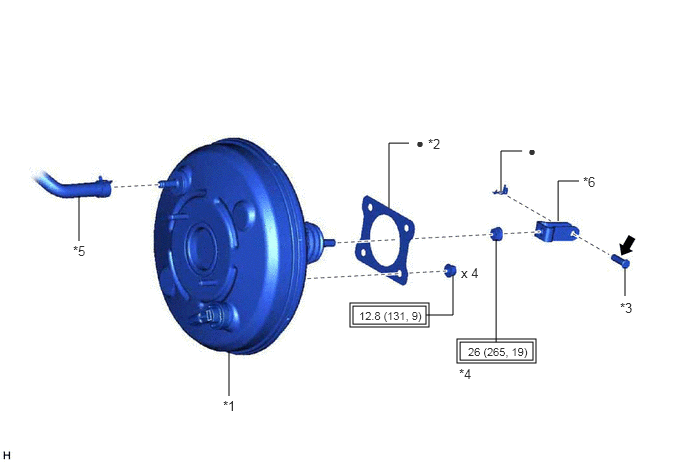

Fig 4: Brake Booster (for Gasoline Model) Replacement Components With Torque Specifications [06/2018 - 08/2020] (4 Of 5)
| *1 | BRAKE BOOSTER ASSEMBLY | *2 | BRAKE BOOSTER GASKET |
| *3 | BRAKE PEDAL LINK PIN | *4 | LOCK NUT |
| *5 | UNION TO CHECK VALVE HOSE | *6 | BRAKE MASTER CYLINDER PUSH ROD CLEVIS |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf) | • | Non-reusable part | |
| Lithium soap base glycol grease | - | - |

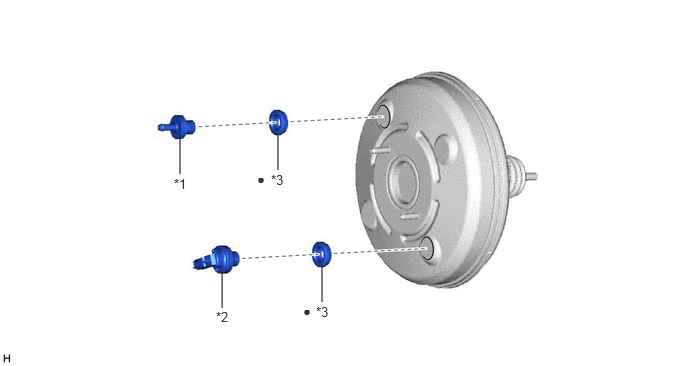

| *1 | BRAKE VACUUM CHECK VALVE ASSEMBLY | *2 | VACUUM WARNING SWITCH ASSEMBLY |
| *3 | CHECK VALVE GROMMET | - | - |
| • | Non-reusable part | - | - |
