Removal [06/2018 - 01/2020]: Procedure

  1. REMOVE BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY

    Refer to REMOVAL [06/2018 - 08/2021]

  2. REMOVE BRAKE PEDAL STROKE SENSOR ASSEMBLY

    Refer to REMOVAL [06/2018 - 08/2021]

  3. REMOVE STOP LIGHT SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 2

  4. REMOVE BRAKE PEDAL SUPPORT ASSEMBLY
    1. Disengage the clamp to separate the wire harness from the brake pedal support assembly.
      GTY744087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and separate the brake pedal support assembly from the instrument panel reinforcement assembly.
      GTY744084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the brake pedal support assembly while avoiding the stud bolts of the brake booster support base.
      NOTE:

      Be careful not to deform the bracket of the instrument panel reinforcement assembly.

  5. REMOVE BRAKE PEDAL RETURN SPRING
    1. Remove the brake pedal return spring from the brake pedal support assembly.
      GTY744088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE STOP LIGHT SWITCH MOUNTING ADJUSTER

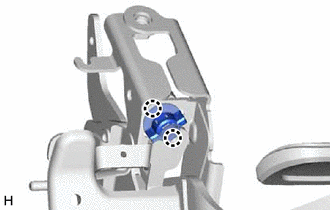

    1. Disengage the 2 claws and remove the stop light switch mounting adjuster.
      GTY744083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE BRAKE PEDAL PAD
    1. Remove the brake pedal pad from the brake pedal support assembly.
