Components [01/2020 - 08/2021]
Fig 1: Brake Pedal (for Gasoline Model) Replacement Components With Torque Specifications [01/2020 - 08/2021] (1 Of 3)
| *1 | BRAKE LINE | *2 | BRAKE MASTER CYLINDER SUB-ASSEMBLY |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf) | * | For use with a union nut wrench |
Fig 2: Brake Pedal (for Gasoline Model) Replacement Components With Torque Specifications [01/2020 - 08/2021] (2 Of 3)
| *1 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | - | - |

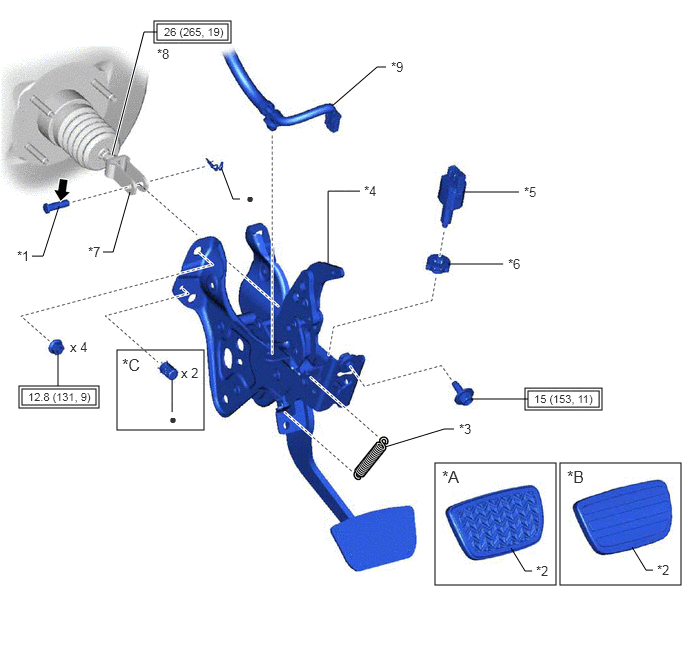

Fig 3: Brake Pedal (for Gasoline Model) Replacement Components With Torque Specifications [01/2020 - 08/2021] (3 Of 3)
| *A | w/ Rubber Pad | *B | w/ Aluminum Pad |
| *C | for TMC Made | - | - |
| *1 | BRAKE PEDAL LINK PIN | *2 | BRAKE PEDAL PAD |
| *3 | BRAKE PEDAL RETURN SPRING | *4 | BRAKE PEDAL SUPPORT ASSEMBLY |
| *5 | STOP LIGHT SWITCH ASSEMBLY | *6 | STOP LIGHT SWITCH MOUNTING ADJUSTER |
| *7 | BRAKE MASTER CYLINDER PUSH ROD CLEVIS | *8 | LOCK NUT |
| *9 | WIRE HARNESS | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf) | • | Non-reusable part | |
| Lithium soap base glycol grease | - | - |
