Components [06/2018 - ]

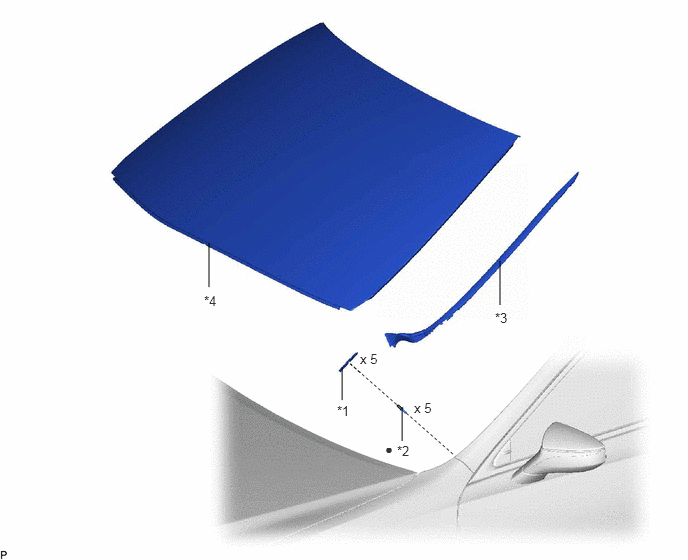

Fig 1: Windshield Outside Moulding Replacement Components [06/2018 - ]
GTY804455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 NO. 1 WINDSHIELD OUTSIDE MOULDING CLIP *2 NO. 3 WINDSHIELD OUTSIDE MOULDING CLIP
*3 WINDSHIELD OUTSIDE MOULDING *4 WINDSHIELD GLASS SUB-ASSEMBLY
• Non-reusable part - -
