Roof Drip Side Finish Moulding
>>
Components [06/2018 - ]
Components [06/2018 - ]

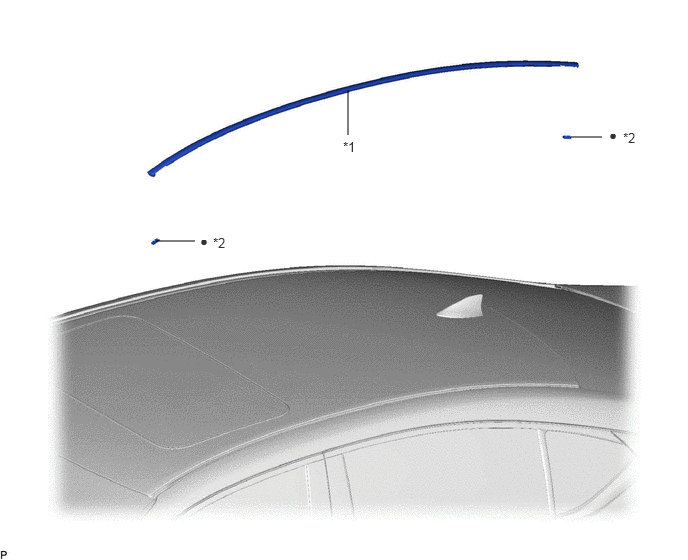

Fig 1: Roof Drip Side Finish Moulding Replacement Components [06/2018 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
CENTER ROOF DRIP SIDE FINISH MOULDING
*2
NO. 1 ROOF DRIP SIDE FINISH MOULDING CLIP
•
Non-reusable part
-
-
