Removal [06/2018 - ]: Procedure

  1. REMOVE NO. 2 ROCKER PANEL MOULDING PROTECTOR

    See step  1

  2. REMOVE ROCKER PANEL MOULDING COVER

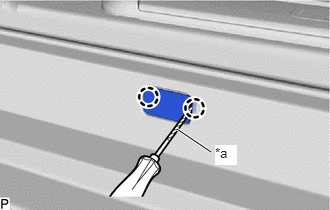

    1. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws to remove the rocker panel moulding cover.
      GTY798517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape

      HINT:

      Use the same procedure for the other rocker panel moulding cover.

  3. REMOVE BODY ROCKER PANEL MOULDING ASSEMBLY

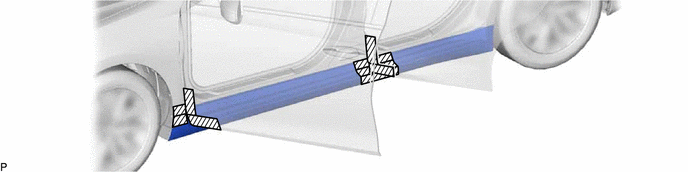

    1. Apply protective tape around the body rocker panel moulding assembly and doors as shown in the illustration.
      GTY804436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape - -

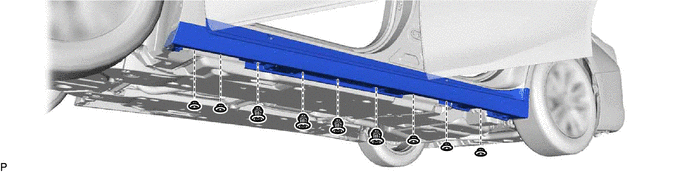

    2. Remove the 9 clips.
      GTY814059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

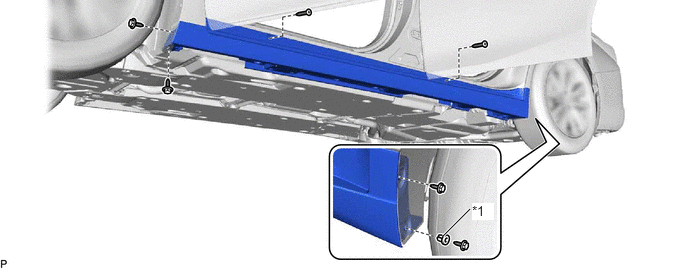

    3. Remove the 6 screws.
      GTY818001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Grommet - -
    4. Remove the grommet

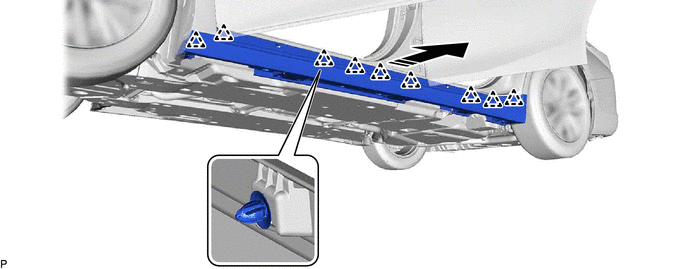

    5. Disengage the 9 clips to remove the body rocker panel moulding assembly as shown in the illustration.
      GTY786960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
