Reassembly [06/2018 - ]: Procedure

HINT:

When installing the No. 5 rocker panel moulding protector, heat the body rocker panel moulding assembly using a heat light.

WARNING:

• Do not touch the heat light and heated parts, touching the heat light may result in burns.
• Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

1. Clean the body rocker panel moulding assembly.
   1. Remove any remaining double-sided tape from the body rocker panel moulding assembly.
   2. Wipe off any tape adhesive residue with cleaner.
2. Using a brush or felt, apply primer or equivalent to the No. 5 rocker panel moulding protector installation area.
   NOTE:

   • Use a clean brush or felt.
   • Do not touch the body rocker panel moulding assembly until the primer has dried.
3. Remove the release paper from a new No. 5 rocker panel moulding protector.

   HINT:

   After removing the release paper, keep the exposed adhesive free from foreign matter.

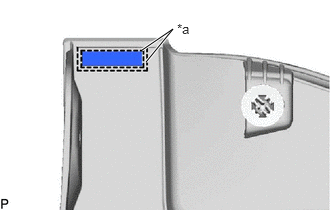

4. Install the No. 5 rocker panel moulding protector as shown in the illustration.

   HINT:

   Press the No. 5 rocker panel moulding protector firmly to install it.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Line

HINT:

When installing the No. 4 rocker panel moulding protector, heat the body rocker panel moulding assembly using a heat light.

WARNING:

• Do not touch the heat light and heated parts, touching the heat light may result in burns.
• Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

1. Clean the body rocker panel moulding assembly.
   1. Using a heat light, heat the body rocker panel moulding assembly surface.
   2. Remove any remaining double-sided tape from the body rocker panel moulding assembly.
   3. Wipe off any tape adhesive residue with cleaner.
2. Using a brush or felt, apply primer or equivalent to the No. 4 rocker panel moulding protector installation area.
   NOTE:

   • Use a clean brush or felt.
   • Do not touch the body rocker panel moulding assembly until the primer has dried.
3. Remove the release paper from a new No. 4 rocker panel moulding protector.

   HINT:

   After removing the release paper, keep the exposed adhesive free from foreign matter.

4. Install the No. 4 rocker panel moulding protector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Press the No. 4 rocker panel moulding protector firmly to install it.
