Disassembly [06/2018 - ]: Procedure

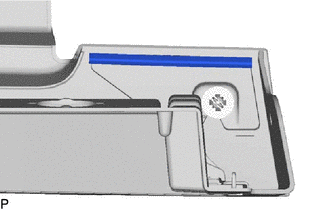

  1. REMOVE NO. 4 ROCKER PANEL MOULDING PROTECTOR
    1. Remove the No. 4 rocker panel moulding protector.
      GTY814075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

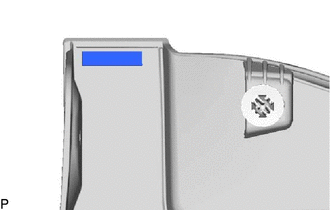

  2. REMOVE NO. 5 ROCKER PANEL MOULDING PROTECTOR
    1. Remove the No. 5 rocker panel moulding protector.
      GTY814080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
