Components [06/2018 - ]

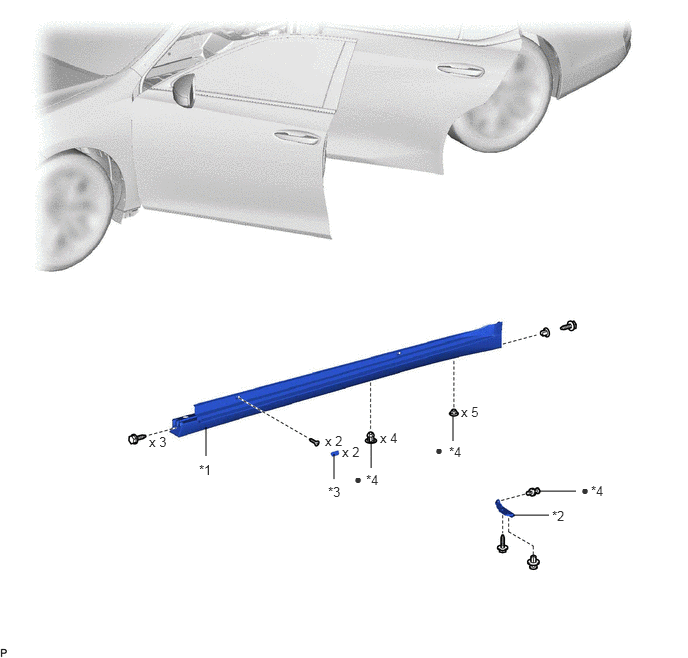

Fig 1: Rocker Panel Molding Replacement Components [06/2018 - ](1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	BODY ROCKER PANEL MOULDING ASSEMBLY	*2	NO. 2 ROCKER PANEL MOULDING PROTECTOR
*3	ROCKER PANEL MOULDING COVER	*4	CLIP
•	Non-reusable part	-	-

Fig 2: Rocker Panel Moulding Replacement Components [06/2018 - ](2 Of 2)

*1	NO. 4 ROCKER PANEL MOULDING PROTECTOR	*2	NO. 5 ROCKER PANEL MOULDING PROTECTOR
•	Non-reusable part	-	-
