Removal [06/2018 - ]: Procedure

  1. REMOVE NO. 2 ROCKER PANEL MOULDING PROTECTOR
    1. Remove the 2 clips.

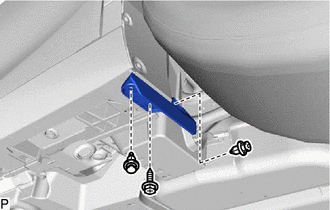

      GTY814062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the screw and No. 2 rocker panel moulding protector.
