Removal [06/2018 - ]: Procedure

  1. REMOVE REAR ROOF DRIP SIDE FINISH MOULDING

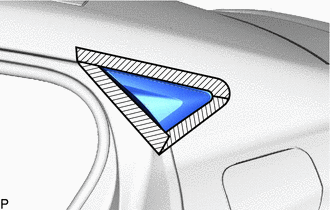

    1. Apply protective tape around the rear roof drip side finish moulding as shown in the illustration.
      GTY785007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

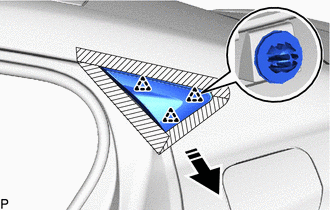

    2. Disengage the 3 clips to remove the rear roof drip side finish moulding as shown in the illustration.
      GTY778385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
