Components [06/2018 - ]

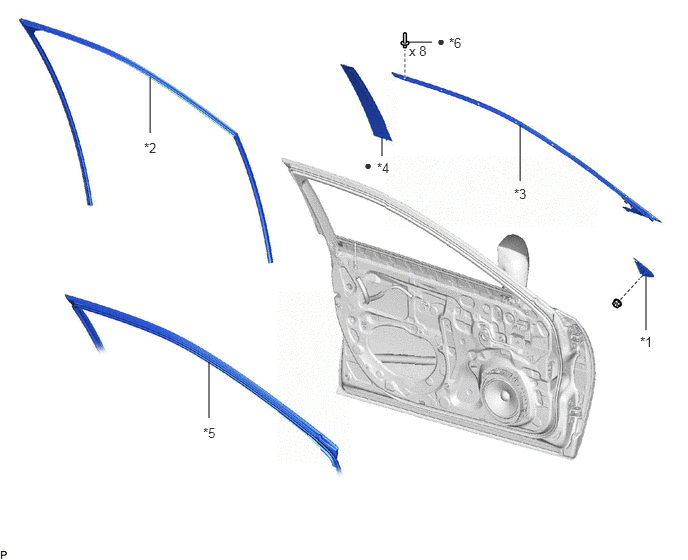

Fig 1: Front Door Window Frame Moulding Replacement Components [06/2018 - ]
GTY786067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT DOOR FRONT LOWER FRAME UPPER COVER *2 FRONT DOOR GLASS RUN
*3 FRONT DOOR OUTSIDE MOULDING SUB-ASSEMBLY *4 FRONT DOOR REAR WINDOW FRAME MOULDING
*5 FRONT DOOR WEATHERSTRIP *6 RIVET
• Non-reusable part - -
