Removal [06/2018 - 08/2020]: Procedure
- PRECAUTION NOTE:
After turning the engine switch (for Gasoline Model) or power switch (for HV Model) off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.
- DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
for 2GR-FKS:
Refer to PROCEDURE - Step 1
for A25A-FXS:
Refer to PROCEDURE - Step 1
- REMOVE NO. 2 DOOR TRIM PAD
Refer to PROCEDURE - Step 5
- REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)
Refer to PROCEDURE - Step 6
- REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)
Refer to PROCEDURE - Step 7
- REMOVE COURTESY LIGHT ASSEMBLY
Refer to PROCEDURE - Step 1
- REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY
Refer to PROCEDURE - Step 9
- REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH
Refer to PROCEDURE - Step 16
- REMOVE FRONT DOOR TRIM BRACKET
Refer to PROCEDURE - Step 17
- REMOVE FRONT DOOR SERVICE HOLE COVER
Refer to PROCEDURE - Step 23
- REMOVE FRONT DOOR VENT SEAL
Refer to PROCEDURE - Step 25
- REMOVE FRONT DOOR PANEL PROTECTOR
Refer to PROCEDURE - Step 26
- REMOVE FRONT DOOR GLASS SUB-ASSEMBLY
Refer to PROCEDURE - Step 27

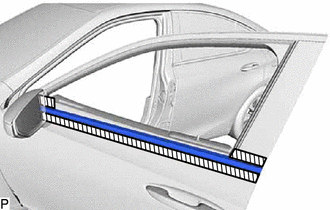

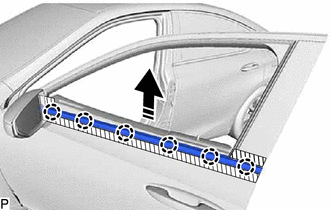

- REMOVE FRONT DOOR BELT MOULDING ASSEMBLY
