System Diagram [06/2018 - 08/2020]

HINT:

Refer to System Diagram of CAN Communication System.

Refer to SYSTEM DIAGRAM [06/2018 - 08/2020]

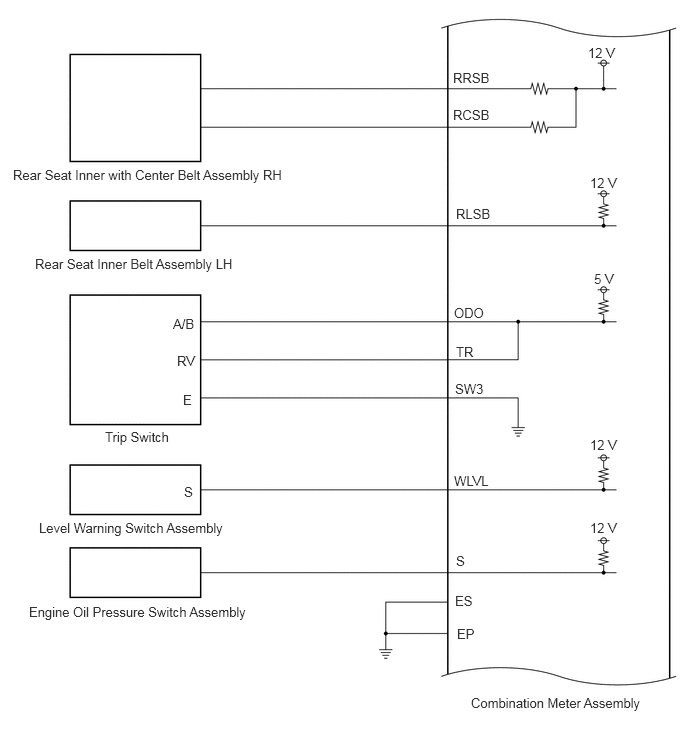

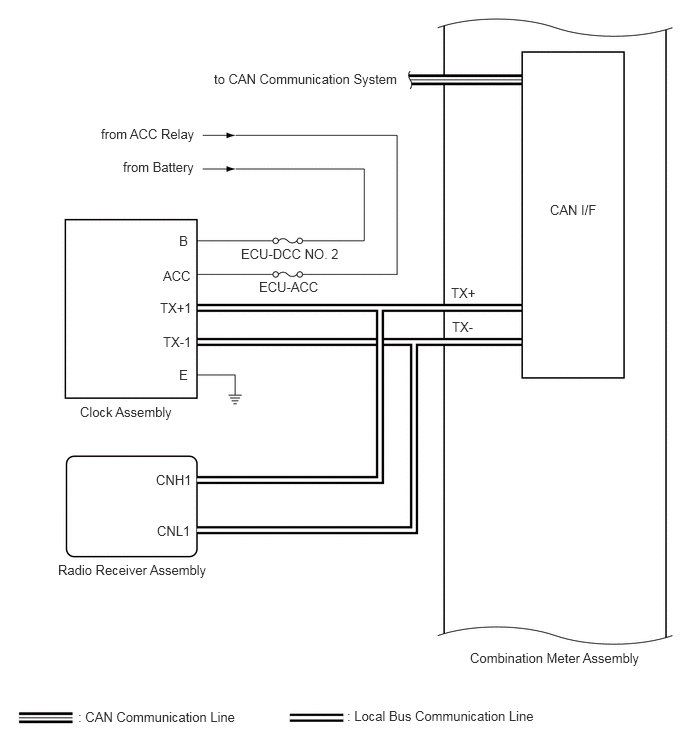

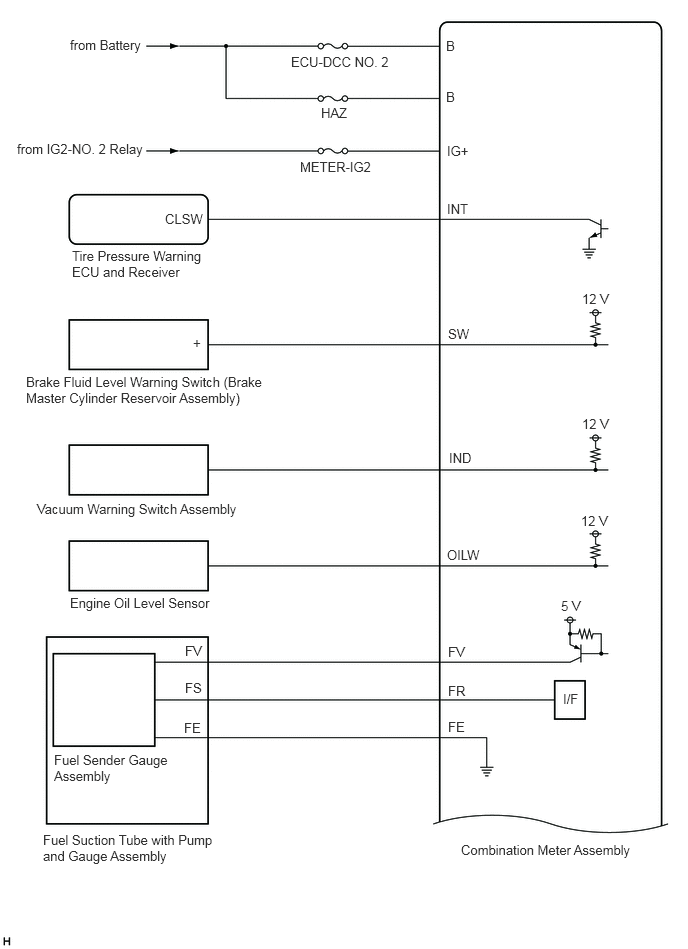

1. COMBINATION METER ASSEMBLY DIAGRAM

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

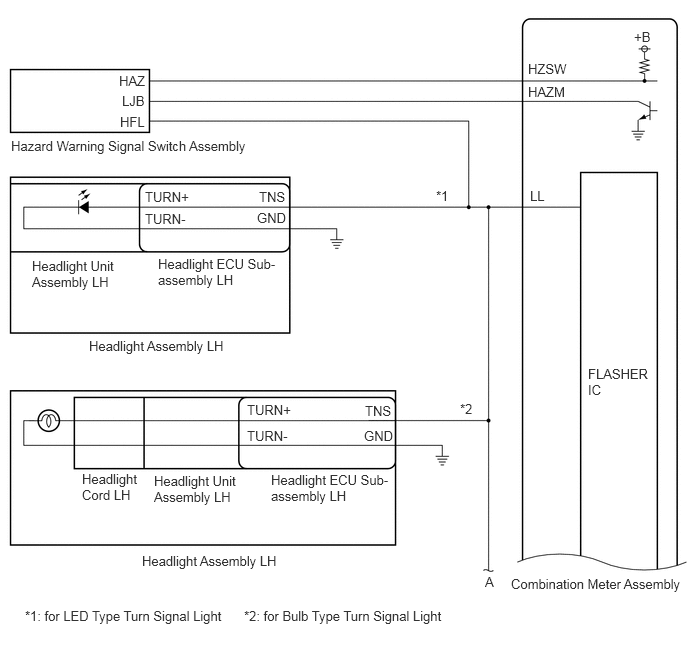

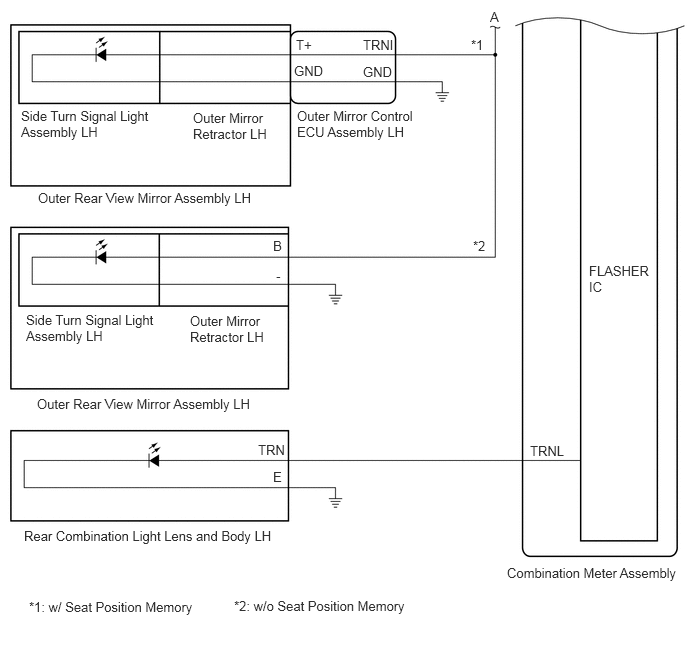

2. TURN SIGNAL LIGHT DIAGRAM
   1. LH SIDE
      1. TMC Made

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

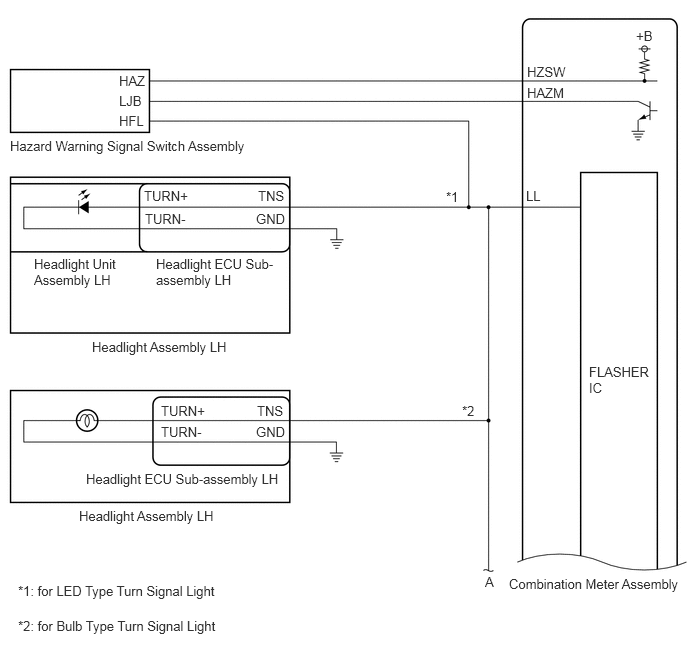

      2. TMMK Made

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

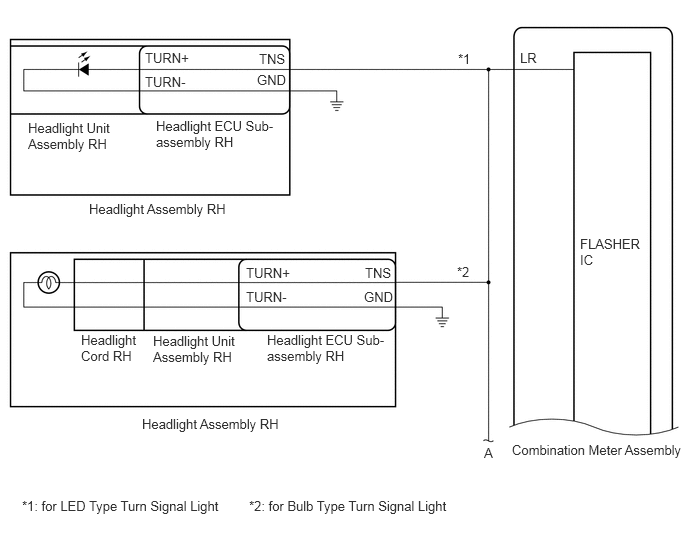

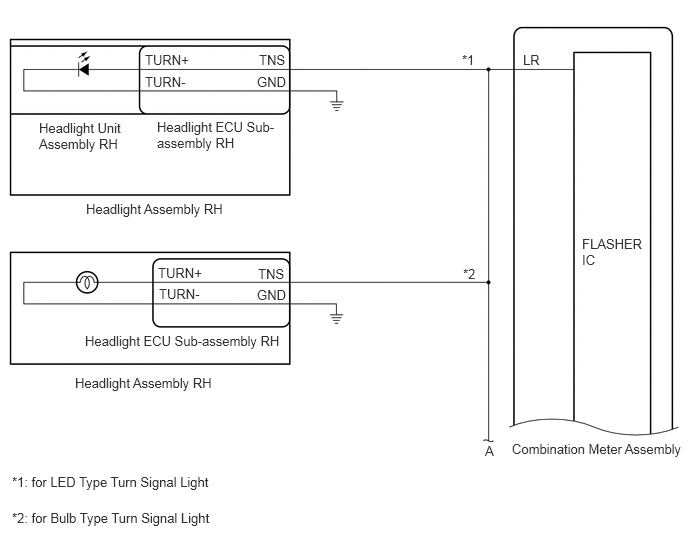

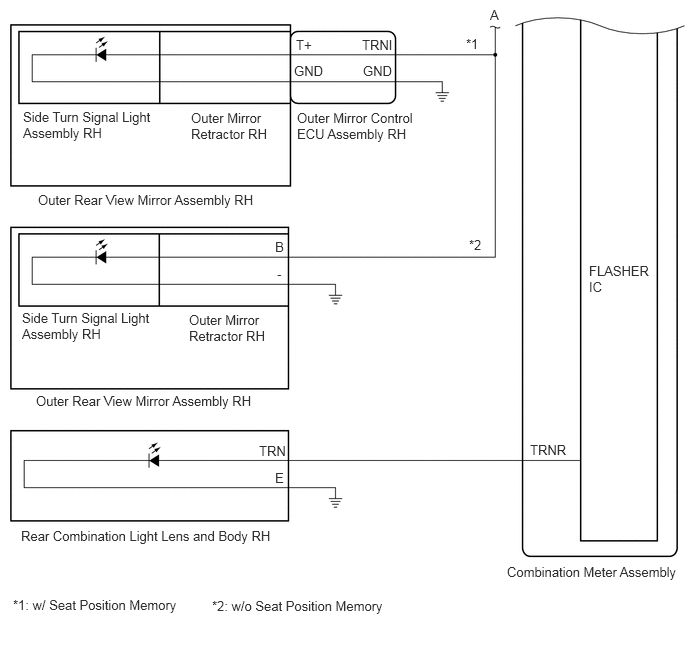

   2. RH SIDE
      1. TMC Made

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      2. TMMK Made

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

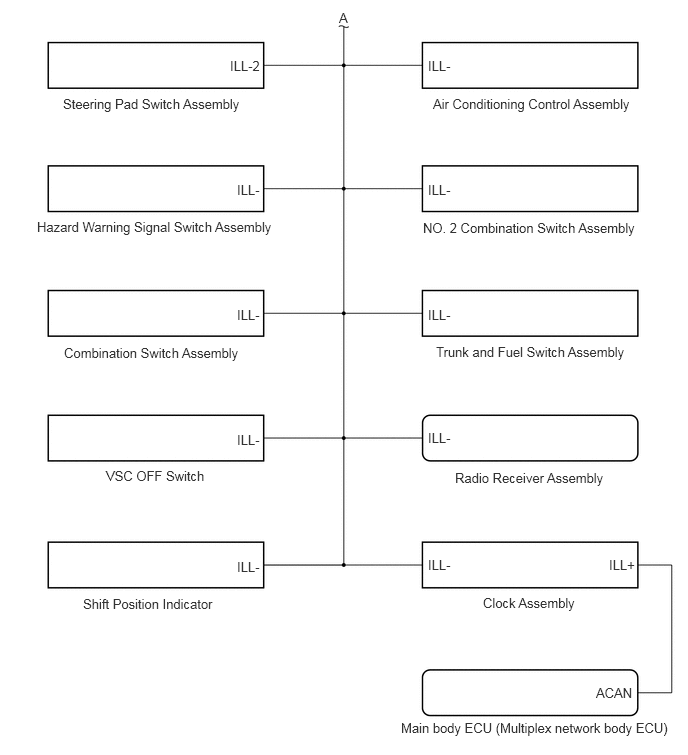

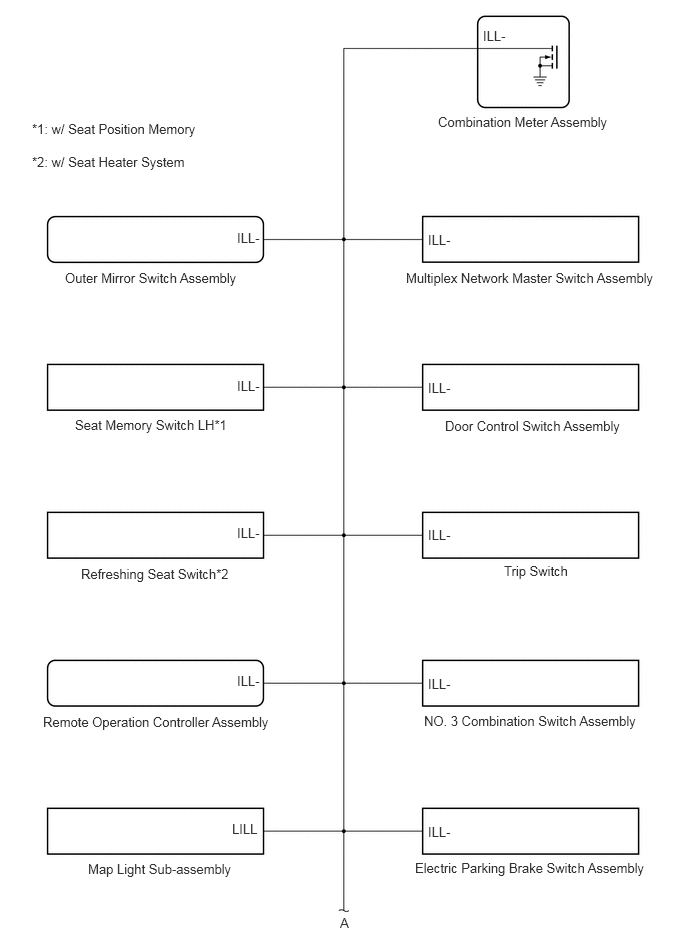

3. ILLUMINATION DIAGRAM

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

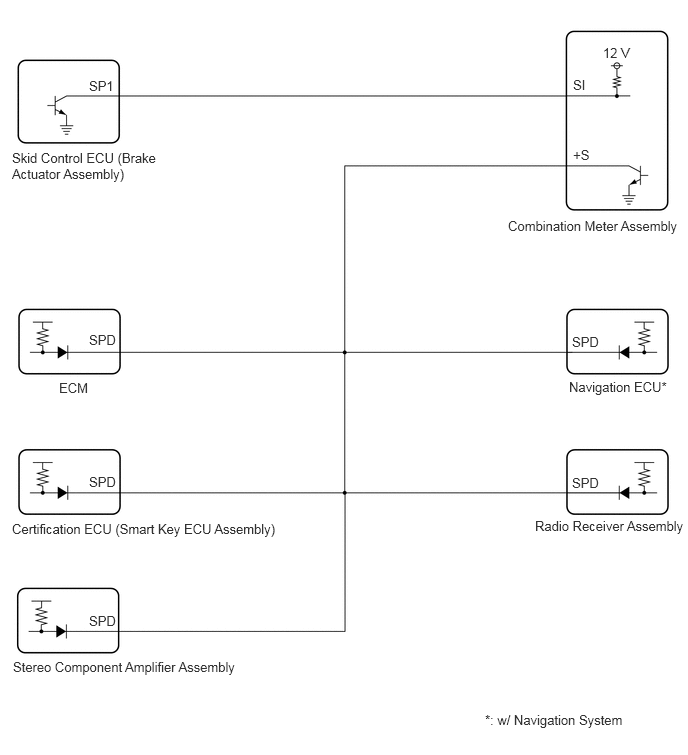

4. SPEED SIGNAL DIAGRAM

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
