Components [06/2018 - 08/2021]

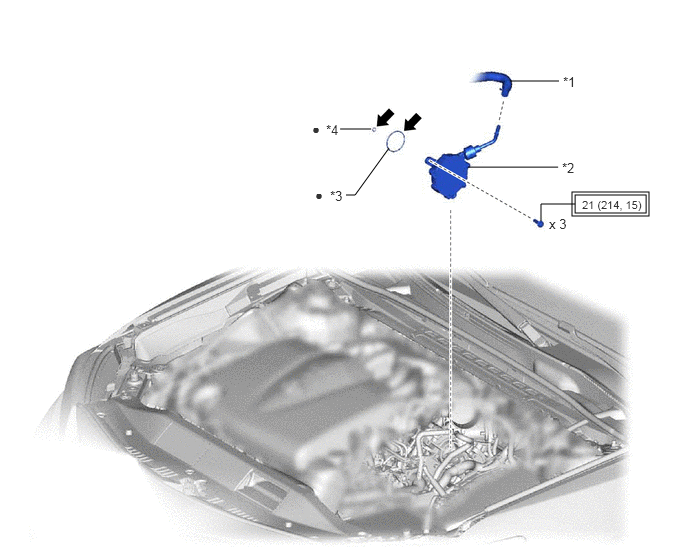

Fig 1: Vacuum Pump (for TMC Made 2GR-FKS) Replacement Components With Torque Specifications [06/2018 - 08/2021] (1 Of 3)
| *1 | ENGINE WIRE | *2 | NO. 2 SURGE TANK STAY |
| *3 | EARTH WIRE | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque |
Fig 2: Vacuum Pump (for TMC Made 2GR-FKS) Replacement Components With Torque Specifications [06/2018 - 08/2021] (2 Of 3)
| *1 | AIR TUBE | *2 | VACUUM PUMP ASSEMBLY |
| *3 | NO. 2 O-RING | *4 | NO. 3 O-RING |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part | |
| Engine oil | - | - |

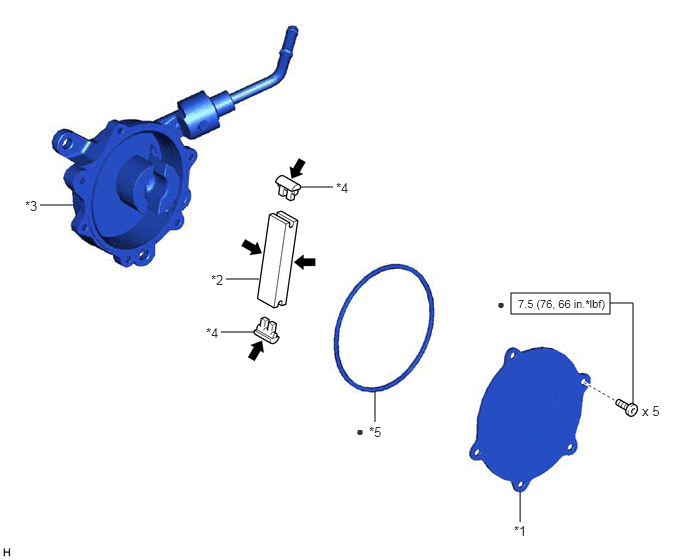

Fig 3: Vacuum Pump (for TMC Made 2GR-FKS) Replacement Components With Torque Specifications [06/2018 - 08/2021] (3 Of 3)
| *1 | END COVER | *2 | VACUUM PUMP VANE |
| *3 | VACUUM PUMP HOUSING | *4 | VACUUM PUMP VANE CAP |
| *5 | NO. 1 O-RING | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| Engine oil | - | - |
