Components [06/2018 - 01/2020]
Fig 1: Brake Pedal (For HV Model) Replacement Components With Torque Specifications [06/2018 - 01/2020] (1 Of 5)
| *1 | FRONT CENTER UPPER SUSPENSION BRACE SUB-ASSEMBLY | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| *T1 | Bolt color black: 8.0 N.m (82 kgf/cm, 71 in.lbf) Bolt color silver: 8.9 N.m (91 kgf/cm, 79 in.lbf) |
- | - |
| *1 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | - | - |

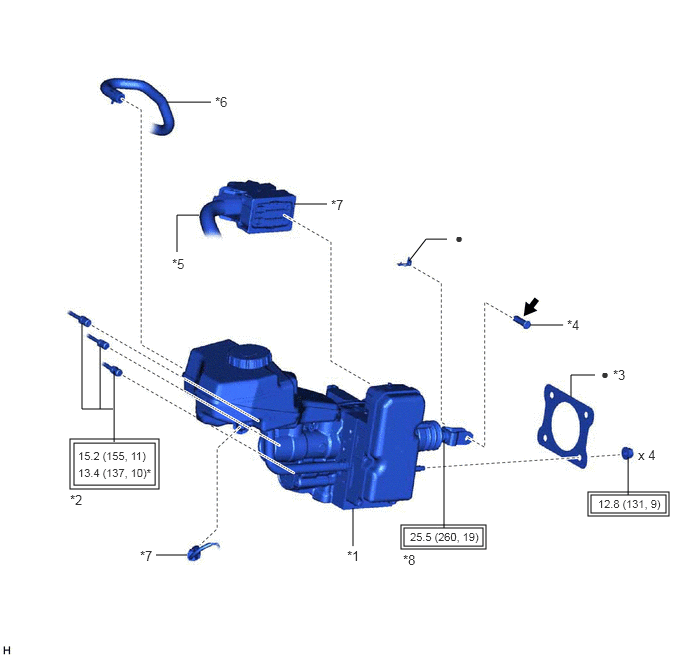

Fig 3: Brake Pedal (For HV Model) Replacement Components With Torque Specifications [06/2018 - 01/2020] (3 Of 5)
| *1 | BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY | *2 | BRAKE LINE |
| *3 | BRAKE MASTER CYLINDER GASKET | *4 | BRAKE PEDAL LINK PIN |
| *5 | ENGINE ROOM MAIN WIRE | *6 | NO. 1 BRAKE ACTUATOR HOSE |
| *7 | CONNECTOR | *8 | LOCK NUT |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | * | For use with a union nut wrench | |
| • | Non-reusable part | Lithium soap base glycol grease |

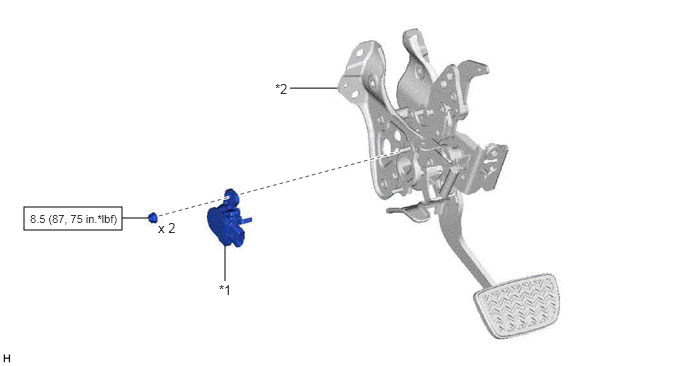

Fig 4: Brake Pedal (For HV Model) Replacement Components With Torque Specifications [06/2018 - 01/2020] (4 Of 5)
| *1 | BRAKE PEDAL STROKE SENSOR ASSEMBLY | *2 | BRAKE PEDAL SUPPORT ASSEMBLY |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

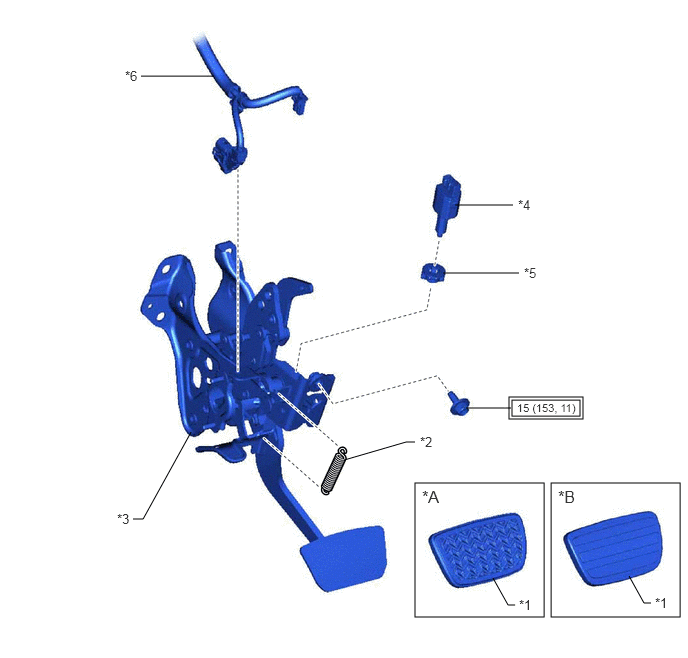

Fig 5: Brake Pedal (For HV Model) Replacement Components With Torque Specifications [06/2018 - 01/2020] (5 Of 5)
| *A | w/ Rubber Pad | *B | w/ Aluminum Pad |
| *1 | BRAKE PEDAL PAD | *2 | BRAKE PEDAL RETURN SPRING |
| *3 | BRAKE PEDAL SUPPORT ASSEMBLY | *4 | STOP LIGHT SWITCH ASSEMBLY |
| *5 | STOP LIGHT SWITCH MOUNTING ADJUSTER | *6 | WIRE HARNESS |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |
