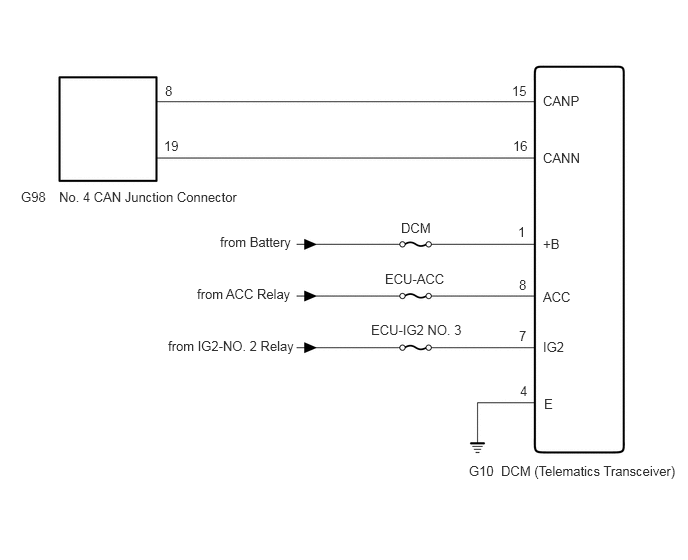

DCM Communication Stop Mode [06/2018 - 10/2019]: Wiring Diagram

GTY817568

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
