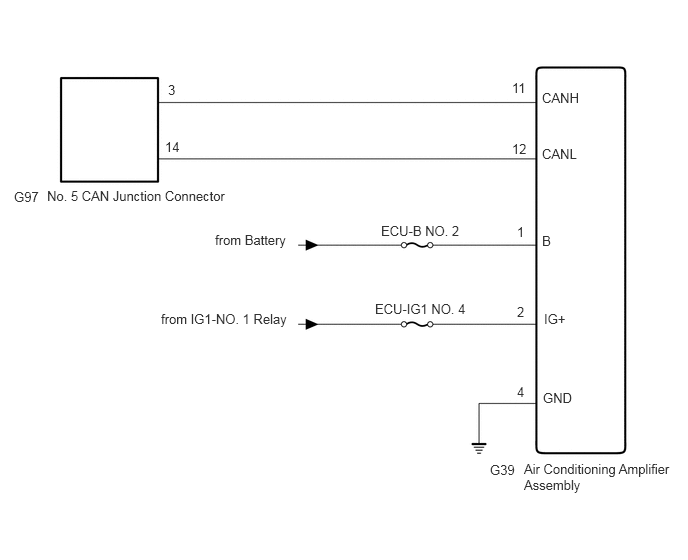

Air Conditioning Amplifier Communication Stop Mode [06/2018 - ]: Wiring Diagram

GTY824260

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
