Removal [09/2022 - ]: Procedure

  1. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to REMOVAL [09/2022 - ]

  2. REMOVE NO. 2 SIDE DEFROSTER NOZZLE DUCT

    Refer to PROCEDURE - Step 1

  3. REMOVE DEFROSTER NOZZLE ASSEMBLY

    Refer to PROCEDURE - Step 2

  4. REMOVE NO. 3 HEATER TO REGISTER DUCT

    Refer to PROCEDURE - Step 4

  5. REMOVE NAVIGATION ANTENNA ASSEMBLY WITH BRACKET

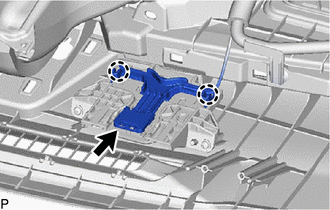

    1. Disconnect the connector.
      GTY789344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws.

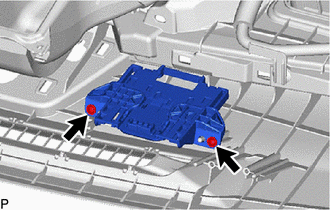

    3. Remove the 2 screws and navigation antenna assembly with bracket.
      GTY789343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE NAVIGATION ANTENNA ASSEMBLY

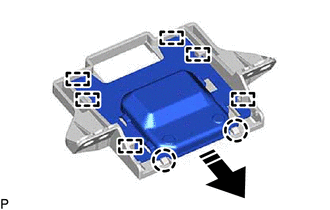

    1. Disengage the 2 claws and 6 guides to remove the navigation antenna assembly as shown in the illustration.
      GTY809169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
