Disassembly [06/2018 - 08/2021]: Procedure

  1. REMOVE NO. 2 SIDE DEFROSTER NOZZLE DUCT
    1. Remove the 2 screws <D>.
      GTY814391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws to remove the No. 2 side defroster nozzle duct.
      GTY814389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE DEFROSTER NOZZLE ASSEMBLY
    1. Remove the 4 screws <D>.
      GTY814426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

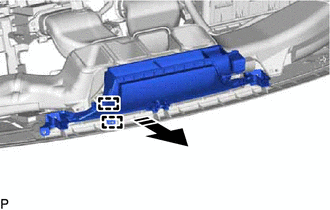

    2. Disengage the 2 guides as shown in the illustration to remove the defroster nozzle assembly.
      GTY815109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  3. REMOVE NO. 1 HEATER TO REGISTER DUCT
    1. Remove the 4 screws <D> and No. 1 heater to register duct.
      GTY814421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NO. 3 HEATER TO REGISTER DUCT
    1. Remove the 3 screws <D> and No. 3 heater to register duct.
      GTY814419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 5

  6. REMOVE NO. 2 HEATER TO REGISTER DUCT
    1. Remove the 2 screws <D> and No. 2 heater to register duct.
      GTY814417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE ANTENNA CORD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  8. REMOVE NAVIGATION ANTENNA ASSEMBLY WITH BRACKET

    Refer to PROCEDURE - Step 5

  9. REMOVE NO. 3 INSTRUMENT PANEL WIRE
    1. Disengage the 4 clamps to remove the No. 3 instrument panel wire.
      GTY814416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE NO. 1 INSTRUMENT PANEL PIN
    1. Remove the 2 screws <D> and 2 No. 1 instrument panel pins.
      GTY814413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE NO. 1 DEFROSTER NOZZLE GARNISH
    1. Disengage the 3 claws and 3 guides to remove the No. 1 defroster nozzle garnish.
      GTY814430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE NO. 2 DEFROSTER NOZZLE GARNISH
    1. Disengage the 3 claws and 3 guides to remove the No. 2 defroster nozzle garnish.
      GTY814429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL

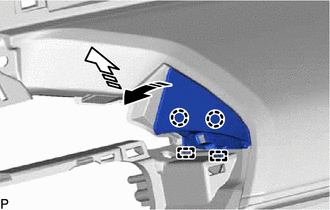

    1. Pull the center instrument cluster finish panel in the direction indicated by the arrow (1) shown in the illustration to disengage the 2 claws.
      GTY832872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
    2. Pull the center instrument cluster finish panel in the direction indicated by the arrow (2) shown in the illustration to disengage the 2 guides and remove it.
  14. REMOVE INSTRUMENT CLUSTER FINISH PANEL END (w/ Headup Display)
    1. Disengage the 5 claws and 2 guides to remove the instrument cluster finish panel end.
      GTY814432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
