Removal [10/2018 - 07/2022]: Procedure

  1. REMOVE INSTRUMENT PANEL SAFETY PAD ASSEMBLY

    Refer to REMOVAL [10/2018 - 08/2021] , or refer to REMOVAL [08/2021 - 07/2022]

  2. REMOVE METER MIRROR SUB-ASSEMBLY

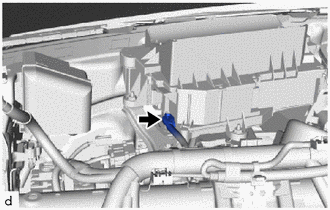

    1. Disconnect the connector.
      GTY812688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

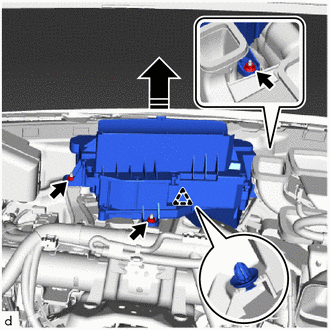

    2. Remove the 3 nuts.
      GTY813994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    3. Disengage the clip to remove the meter mirror sub-assembly as shown in the illustration.
