Combination Meter
>>
Components [10/2018 - 07/2022]
Components [10/2018 - 07/2022]
Fig 1: Combination Meter Replacement Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
COMBINATION METER ASSEMBLY
*2
METER HOOD SUB-ASSEMBLY
*3
NO. 1 DEFROSTER NOZZLE GARNISH
-
-

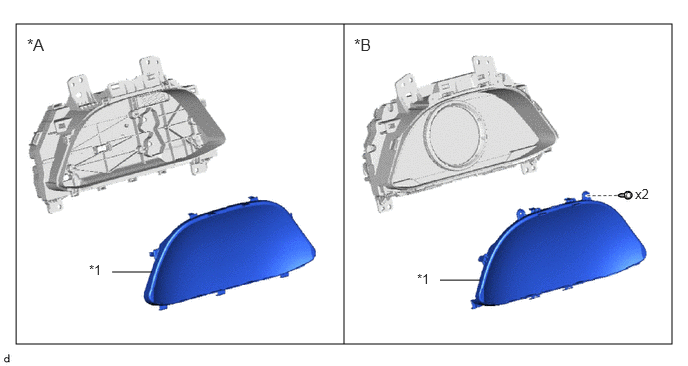

Fig 2: Combination Meter Replacement Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A
except Sport Package
*B
for Sport Package
*1
COMBINATION METER GLASS
-
-
