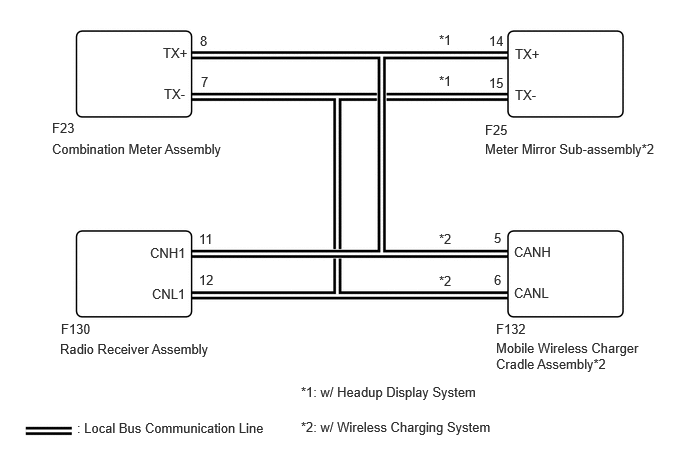

DTC B1321-87: Lost Communication with EMV Missing Message [07/2022 - ]: Wiring Diagram

  1. GTY1135682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
