Removal [10/2018 - ]: Procedure

  1. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

    Refer to REMOVAL [10/2018 - ]

  2. REMOVE COWL BODY MOUNTING REINFORCEMENT

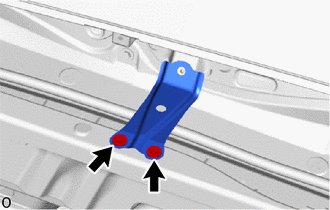

    1. Remove the 2 bolts and cowl body mounting reinforcement from the outer cowl top panel sub-assembly.
      GTY805118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE FRONT PERFORMANCE ROD
    1. Remove the 2 nuts and front performance rod from the vehicle.
      GTY833838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
