Components [10/2018 - ]

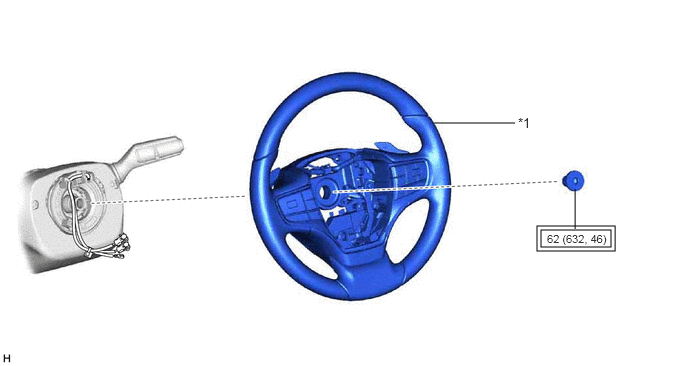

Fig 1: Spiral Cable Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	STEERING WHEEL ASSEMBLY	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf)	-	-

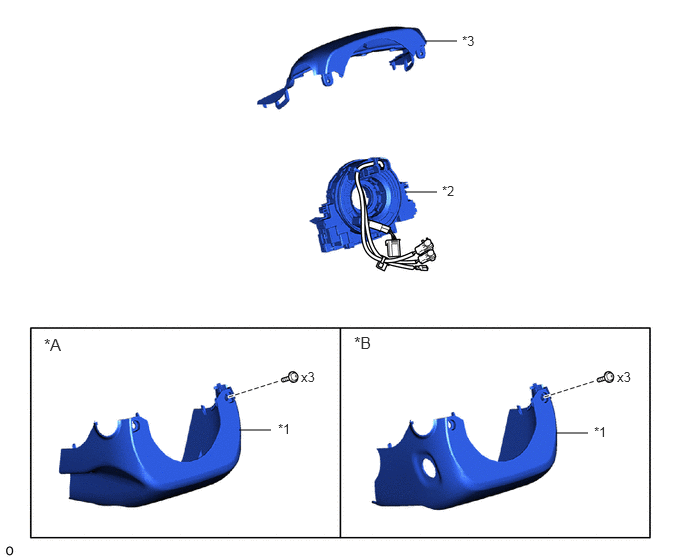

Fig 2: Spiral Cable Replacement Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Manual Tilt and Manual Telescopic Steering Column	*B	for Power Tilt and Power Telescopic Steering Column
*1	LOWER STEERING COLUMN COVER	*2	SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
*3	UPPER STEERING COLUMN COVER	-	-

Fig 3: Spiral Cable Replacement Components (3 Of 3)

SPIRAL CABLE SUB-ASSEMBLY

STEERING SENSOR
