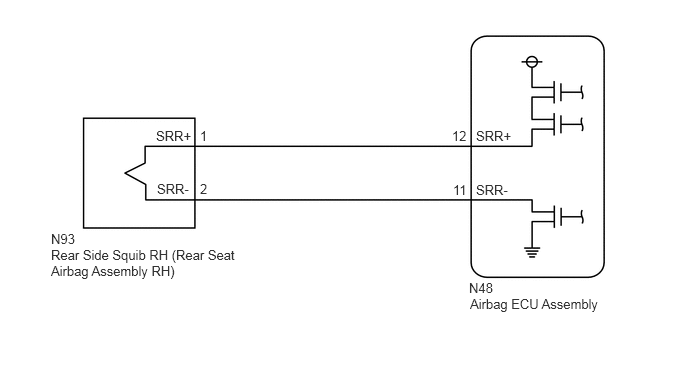

DTC B1850: Short in Rear Side Squib RH Circuit; DTC B1851: Open in Rear Side Squib RH Circuit; DTC B1852: Short to GND in Rear Side Squib RH Circuit; DTC B1853: Short to B+ in Rear Side Squib RH Circuit [10/2018 - ]: Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
