Removal [10/2018 - 07/2022]: Procedure

  1. PRECAUTION
    NOTE:
    • After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

      Refer to PRECAUTION [10/2018 - 07/2022]

    • When replacing the auxiliary battery, use a new auxiliary battery of the same dimensions with a capacity of 51 Ah or more at a 20-hour rate.
  2. REMOVE NO. 2 DECK BOARD SUB-ASSEMBLY
    1. Pull up the webbing and disengage the hook as shown in the illustration.
      GTY783895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Webbing
      *b Hook
      Remove in this Direction
    2. Disengage the clip and guide to remove the No. 2 deck board sub-assembly as shown in the illustration.
      GTY825805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
  3. REMOVE LUGGAGE COMPARTMENT TRIM BOX

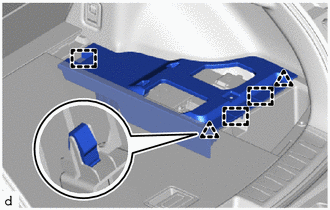

    1. Disengage the 2 clips and 3 guides to remove the luggage compartment trim box.
      GTY782239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE DECK FLOOR BOX RH

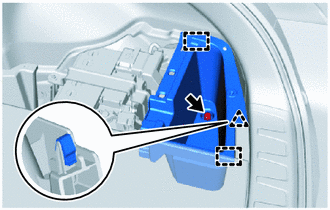

    1. Remove the clip.
      GTY828829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clip and 2 guides to remove the deck floor box RH.
  5. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

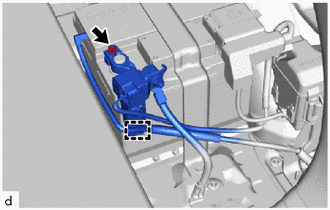

    1. Disengage the clamp to separate the auxiliary battery hose.
      GTY782240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Loosen the nut and disconnect the cable from the negative (-) auxiliary battery terminal.
      NOTE:

      When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

      Refer to INITIALIZATION [10/2018 - 07/2022]

  6. REMOVE AUXILIARY BATTERY

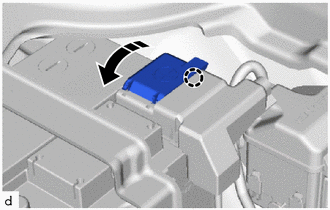

    1. Disengage the claw and open the battery terminal cap shown in the illustration.
      GTY775421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Open
    2. Loosen the nut and disconnect the cable from the positive (+) auxiliary battery terminal.
      GTY782236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the auxiliary battery hose.
      GTY832682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the bolt, nut and battery clamp sub-assembly.
      GTY832643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the auxiliary battery from the vehicle shown in the illustration.
      GTY813849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
