Installation [10/2018 - ]: Procedure

  1. INSTALL AUXILIARY BATTERY

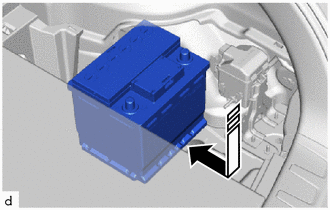

    1. Install the auxiliary battery to the vehicle shown in the illustration.
      GTY822106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Install the battery clamp sub-assembly with the bolt and nut.

      Bolt

      Torque: 16.5 N.m (168 kgf/cm, 12 ft.lbf)

      Nut

      Torque: 3.5 N.m (36 kgf/cm, 31 in.lbf)

    3. Connect the auxiliary battery hose.
    4. Connect the cable to the positive (+) auxiliary battery terminal.
    5. Tighten the nut.

      Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)

    6. Engage the claw to close the battery terminal cap shown in the illustration.
      GTY780733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Close
  2. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
    1. Connect the cable to the negative (-) auxiliary battery terminal and tighten the nut.

      Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)

      NOTE:

      When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

      Refer to INITIALIZATION [10/2018 - 07/2022] , or refer to INITIALIZATION [07/2022 - ]

  3. INSTALL DECK FLOOR BOX RH
    1. Engage the 2 guides and clip to install the deck floor box RH.
    2. Install the clip.
  4. INSTALL LUGGAGE COMPARTMENT TRIM BOX
    1. Engage the 3 guides and 2 clips to install the luggage compartment trim box.
  5. INSTALL NO. 2 DECK BOARD SUB-ASSEMBLY
    1. Engage the guide and clip to install the No. 2 deck board sub-assembly as shown in the illustration.
      GTY818893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)

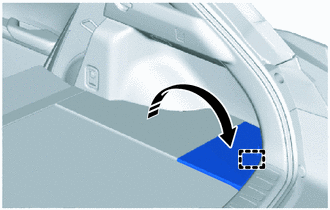

    2. Close the No. 2 deck board sub-assembly to engage the hook as shown in the illustration.
      GTY784612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
