ABS Warning Light Remains ON [10/2018 - ]: Procedure

1. Check if CAN communication system DTCs are output.

   Refer to DIAGNOSIS SYSTEM [10/2018 - 10/2019] , or refer to DIAGNOSIS SYSTEM [10/2019 - 08/2021] , or refer to DIAGNOSIS SYSTEM [08/2021 - 07/2022] , or refer to DIAGNOSIS SYSTEM [07/2022 - ]

   Result

   Result	Proceed to
   DTCs are not output.	A
   DTCs are output.	B

Result:

B

INSPECT CAN COMMUNICATION SYSTEM. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [10/2018 - ]

Result:

A

See step  2

1. Check if the skid control ECU (brake booster with master cylinder assembly) connector is securely connected.

   OK

   The connector is securely connected.

   Result

   Proceed to
   OK
   NG

Result:

NG

CONNECT CONNECTOR TO BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY CORRECTLY

Result:

OK

See step  3

1. Check the auxiliary battery voltage.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   Auxiliary battery	Power switch on (IG)	11 to 14 V
   Auxiliary battery	Power switch on (READY)	11 to 15.5 V

   Result

   Proceed to
   OK
   NG

Result:

NG

CHARGE OR REPLACE AUXILIARY BATTERY

Result:

OK

See step  4

1. Turn the power switch off.

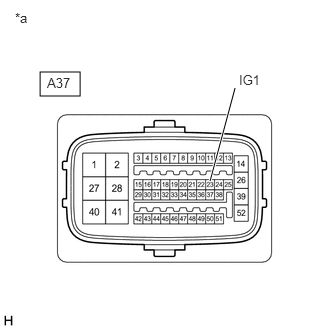

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Front view of wire harness connector (to Skid Control ECU (Brake Booster with Master Cylinder Assembly))

2. Make sure that there is no looseness at the locking part and the connecting part of the connector.

   OK

   The connector is securely connected.

3. Disconnect the skid control ECU (brake booster with master cylinder assembly) connector.
4. Check both the connector case and the terminals for deformation and corrosion.

   OK

   No deformation or corrosion.

5. Turn the power switch on (IG).
6. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   A37-23 (IG1) - Body ground	Power switch on (IG)	11 to 14 V

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (IG1 CIRCUIT)

Result:

OK

See step  5

1. Turn the power switch off.

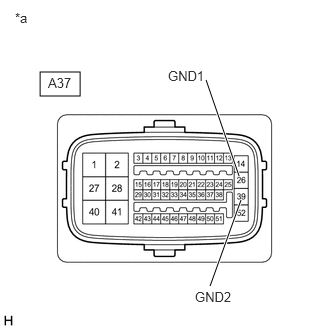

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Front view of wire harness connector (to Skid Control ECU (Brake Booster with Master Cylinder Assembly))

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A37-26 (GND1) - Body ground	Always	Below 1 Ω
   A37-39 (GND2) - Body ground	Always	Below 1 Ω

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (GND CIRCUIT)

Result:

OK

See step  6

1. Reconnect the A37 skid control ECU (brake booster with master cylinder assembly) connector.
2. Select the Data List on the Techstream.

   Refer to DATA LIST / ACTIVE TEST [10/2018 - ]

   Chassis > ABS/VSC/TRAC > Data List

   Tester Display	Measurement Item	Range	Normal Condition	Diagnostic Note
   ABS Warning Light	ABS warning light	ON or OFF	ON: Warning light on OFF: Warning light off	-

   Chassis > ABS/VSC/TRAC > Data List

   Tester Display
   ABS Warning Light

3. Check the Techstream display condition of the ABS warning light.

   Result

   Result	Proceed to
   ON is displayed.	A
   OFF is displayed.	B

Result:

A

REPLACE BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY. Refer to  REMOVAL [10/2018 - 07/2022]  , or refer to  REMOVAL [07/2022 - ]

Result:

B

INSPECT METER / GAUGE SYSTEM. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [10/2018 - 07/2022]  , or refer to  HOW TO PROCEED WITH TROUBLESHOOTING [07/2022 - ]
